ISCH92N04NM7VSC

NEW

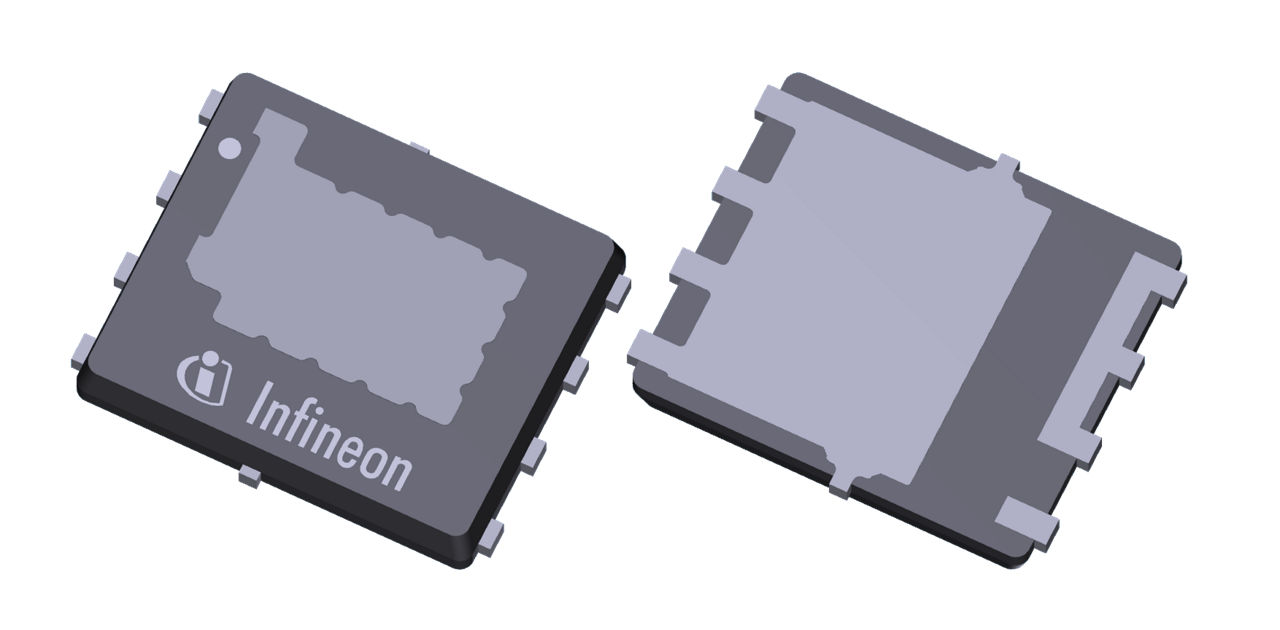

OptiMOS™ 7 40 V motor-drives optimized power MOSFETs in a PQFN 5x6 Dual Side Cooled package. The ultimate motor-drives solution.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISCH92N04NM7VSC
ISCH92N04NM7VSC
Data Sheet

Product details

  • ID (@25°C) max
    289 A
  • IDpuls max
    1156 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    SuperSO8 5x6 DSC
  • Polarity
    N
  • Ptot max
    150 W
  • QG (typ @10V)
    65 nC
  • RDS (on) (@10V) max
    0.92 mΩ
  • Special Features
    Dual-Side Cooling
  • VDS max
    40 V
  • VGS(th)
    2.75 V
Recommended
OPN
ISCH92N04NM7VSCATMA1
Product Status active and preferred
Infineon Package
PG-WSON-8
Package Name SuperSO8 5x6 DSC
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-WSON-8
Package Name SuperSO8 5x6 DSC
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The OptiMOS™ 7 40V motor-drives optimized offers up to 3x wider Safe Operating Area vs. OptiMOS™ 6, providing highest reliability. An increased threshold voltage of 3.2 V offers enhanced induced turn-on ruggedness. 70% lower transconductance enables ease of use by improving current sharing, reducing voltage overshoot and an inherent short circuit current limitation characteristic boosting performance while handling harsh operation conditions.

Features

  • Price-Performance optimized
  • Up to 3x wider SOA
  • Short-circuit current limitation
  • Higher threshold voltage Vth up to 3.2V
  • Controlled Transconductance gfs
  • High performance DSC package

Benefits

  • Cost-effecive solutions
  • Enhanced efficiency
  • Improved robustness in harsh conditions
  • Improved pulse current handling
  • Immunity vs. Short-circuit events
  • Immunity v, parasitic turn-on events
  • Intrinsic short current limitation
  • Improved slew rate control
  • Better EMI behavior and ease of use
  • Improved thermal performance, lower Rth
