Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

IRLU8743

END OF LIFE

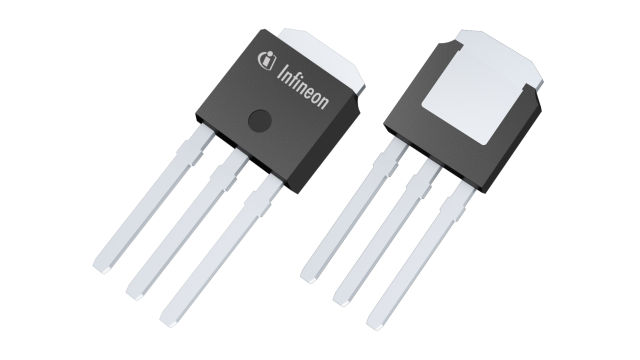

30V Single N-Channel Power MOSFET in a I-Pak package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRLU8743
IRLU8743
Data Sheet

Product details

  • Budgetary Price €/1k
    0.54
  • ID (@25°C) max
    160 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    IPAK (TO-251)
  • Polarity
    N
  • Ptot max
    135 W
  • Qgd
    13 nC
  • QG (typ @4.5V)
    39 nC
  • RDS (on) (@10V) max
    3.1 mΩ
  • RDS (on) (@4.5V) max
    3.9 mΩ
  • RthJC max
    1.11 K/W
  • Tj max
    175 °C
  • VDS max
    30 V
  • VGS(th)
    1.9 V
  • VGS max
    20 V
OPN
IRLU8743PBF
Product Status discontinued
Infineon Package
IPAK
Package Name IPAK
Packing Size 3000
Packing Type TUBE
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
IPAK
Package Name IPAK
Packing Size 3000
Packing Type TUBE
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Features

  • Optimized for broadest availability from distribution partners
  • Product qualification according to JEDEC standard
  • Industry standard through-hole package
  • Silicon optimized for applications switching below <100kHz

Benefits

  • Wide availability from distribution partners
  • Industry standard qualification level
  • Standard pinout allows for drop in replacement
  • High performance in low frequency applications

Applications
