IRHNS597260SCS
IRHNS597260SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • ESD Class
    Class 3A
  • Generation
    R5
  • ID (@100°C) max
    -21 A
  • ID (@25°C) max
    -33.5 A
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SupIR-SMD
  • Polarity
    P
  • QG
    180 nC
  • QPL Part Number
    2N7549U2A
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    102 mΩ
  • SEE
    Yes
  • TID max
    100 Krad(Si)
  • VBRDSS min
    -200 V
  • VF max
    -5 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

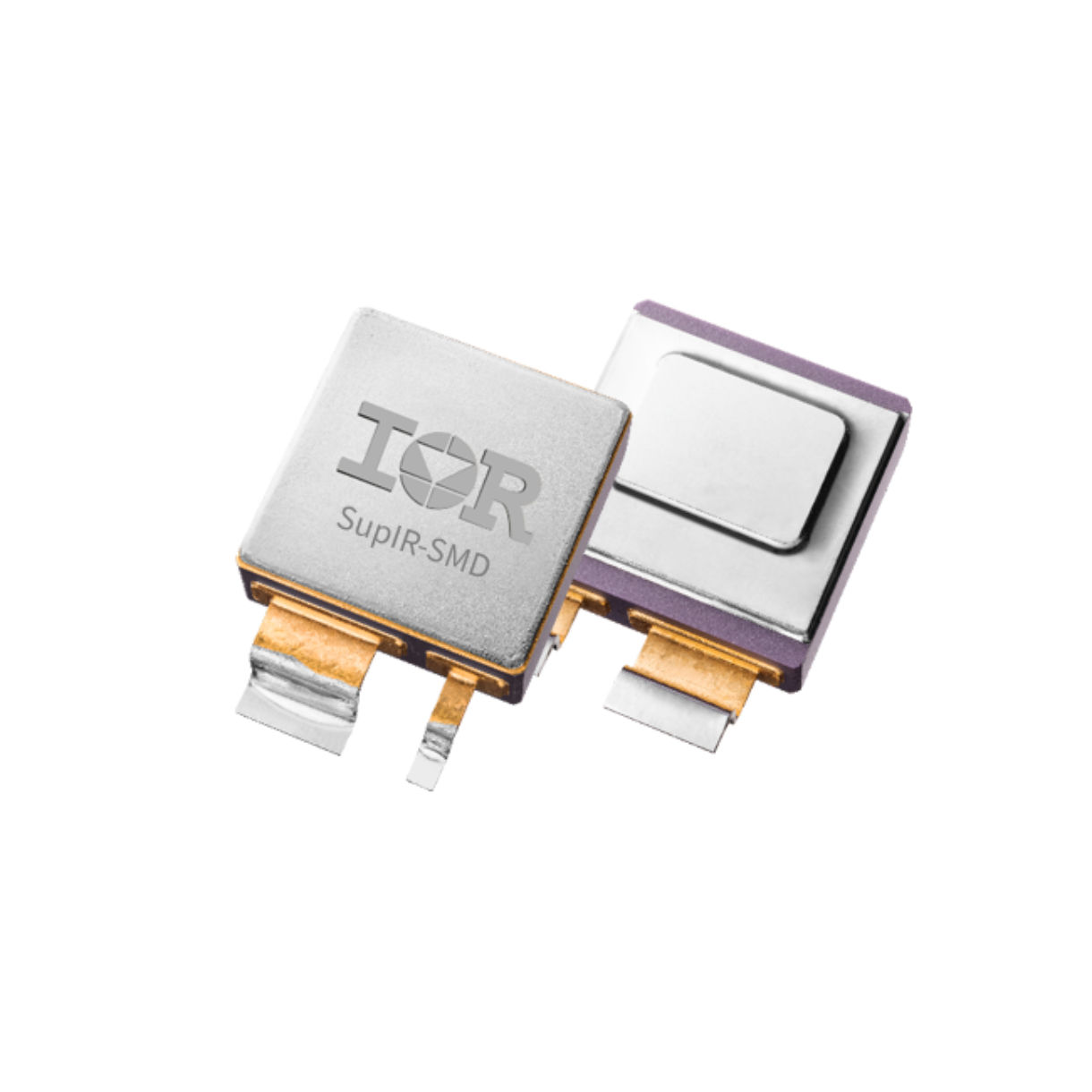

IRHNS597260SCS is a R5, rad hard, -200V, -33A, single, P-channel MOSFET in a SupIR-SMD package. It has electrical performance up to 100krad(Si) TID, QIRL classification and has low RDS(on) and low gate charge, making it suitable for switching applications such as DC-DC converters and motor controllers, while retaining the advantages of MOSFETs.
