IRHNS57064SCS
IRHNS57064SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • ESD Class
    Class 3B
  • Generation
    R5
  • ID (@100°C) max
    75 A
  • ID (@25°C) max
    75 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300 500
  • Package
    SupIR-SMD
  • Polarity
    N
  • Product Category
    Rad hard MOSFETS
  • QG
    165 nC
  • QPL Part Number
    2N7468U2A
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    5.6 mΩ
  • SEE
    Yes
  • TID max
    100 Krad(Si)
  • VBRDSS min
    60 V
  • VF max
    1.3 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

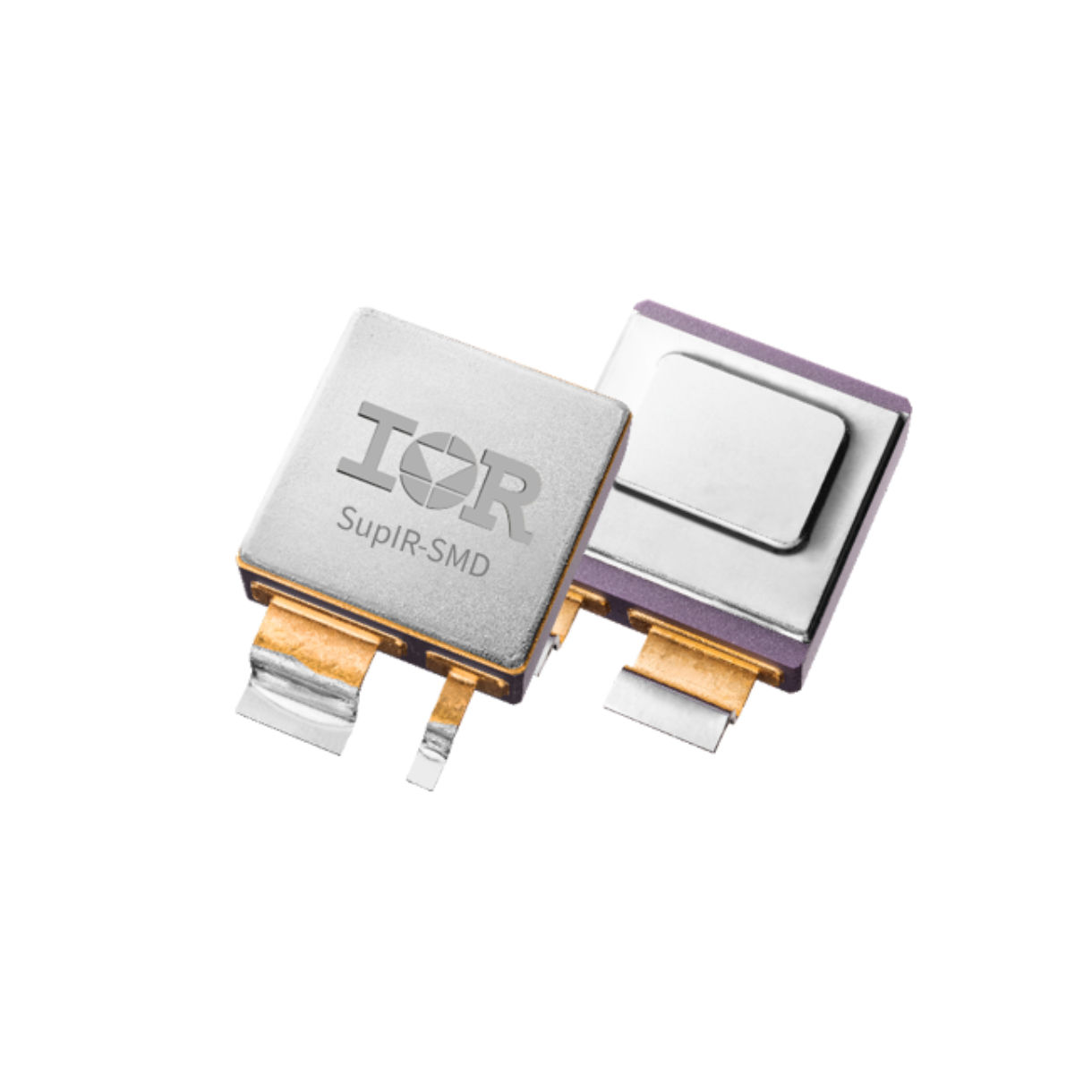

This R5 N-channel MOSFET IRHNS57064SCS features rad hard technology, operates at 60V and 75A, and is QIRL space-grade. It comes in an SupIR-SMD package and offers electrical performance up to 100krad(Si) TID. With its low RDS(on) and low gate charge for minimal power losses, IRHNS57064SCS provides high performance power for space applications.
