IRHNJ9A3234SCS
IRHNJ9A3234SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    3
  • ESD Class
    Class 2
  • Generation
    R9
  • ID (@100°C) max
    10.5 A
  • ID (@25°C) max
    17 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300

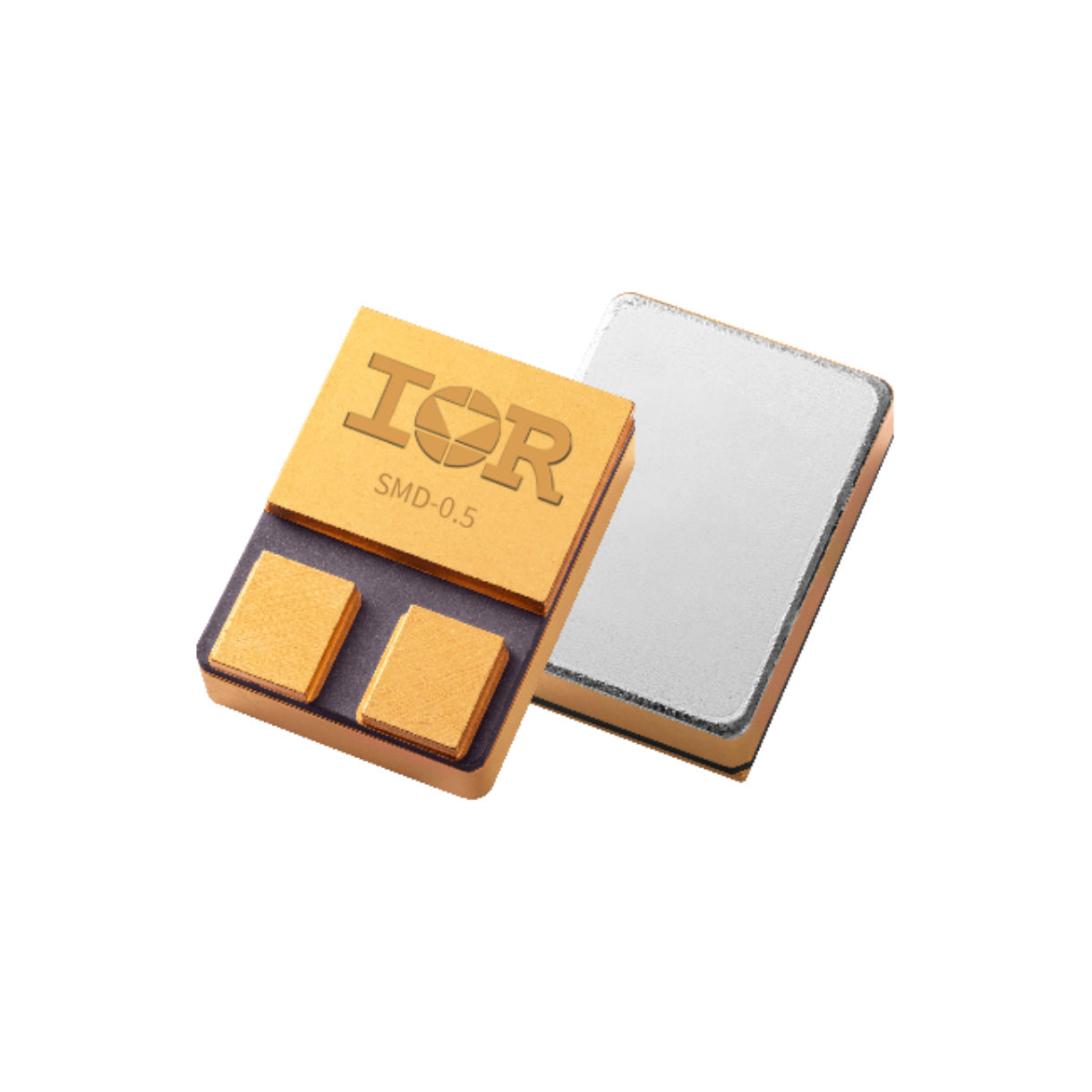

  • Package
    SMD-0.5
  • Polarity
    N
  • Product Category
    Rad hard MOSFETS
  • QG
    34 nC
  • QPL Part Number
    2N7649U3
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    110 mΩ
  • SEE
    Yes
  • TID max
    300 Krad(Si)
  • VBRDSS min
    250 V
  • VF max
    1.2 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
IRHNJ9A3234SCS, a rad hard R9 N-channel MOSFET with 250V and 17A capabilities. This single MOSFET, in an SMD-0.5 package, has electrical performance up to 300krad(Si) TID, and a QIRL classification. With improved SEE immunity and low RDS(on), this MOSFET is ideal for high speed switching applications in space.
