IRHNA67264SCS
IRHNA67264SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • Download Model
    https://www.infineon.com/cms/dgdl/Infineon-Spice_File_IRHNA67264-SimulationModels-v01_01-EN.spi?fileId=8ac78c8c84f2c0670184f4f44f3c11b8
  • ESD Class
    Class 3A
  • Generation
    R6
  • ID (@100°C) max
    31.5 A
  • ID (@25°C) max
    50 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SMD-2
  • Polarity
    N
  • Product Category
    Rad hard MOSFETS
  • QG
    220 nC
  • QPL Part Number
    2N7585U2
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    40 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS min
    250 V
  • VF max
    1.2 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

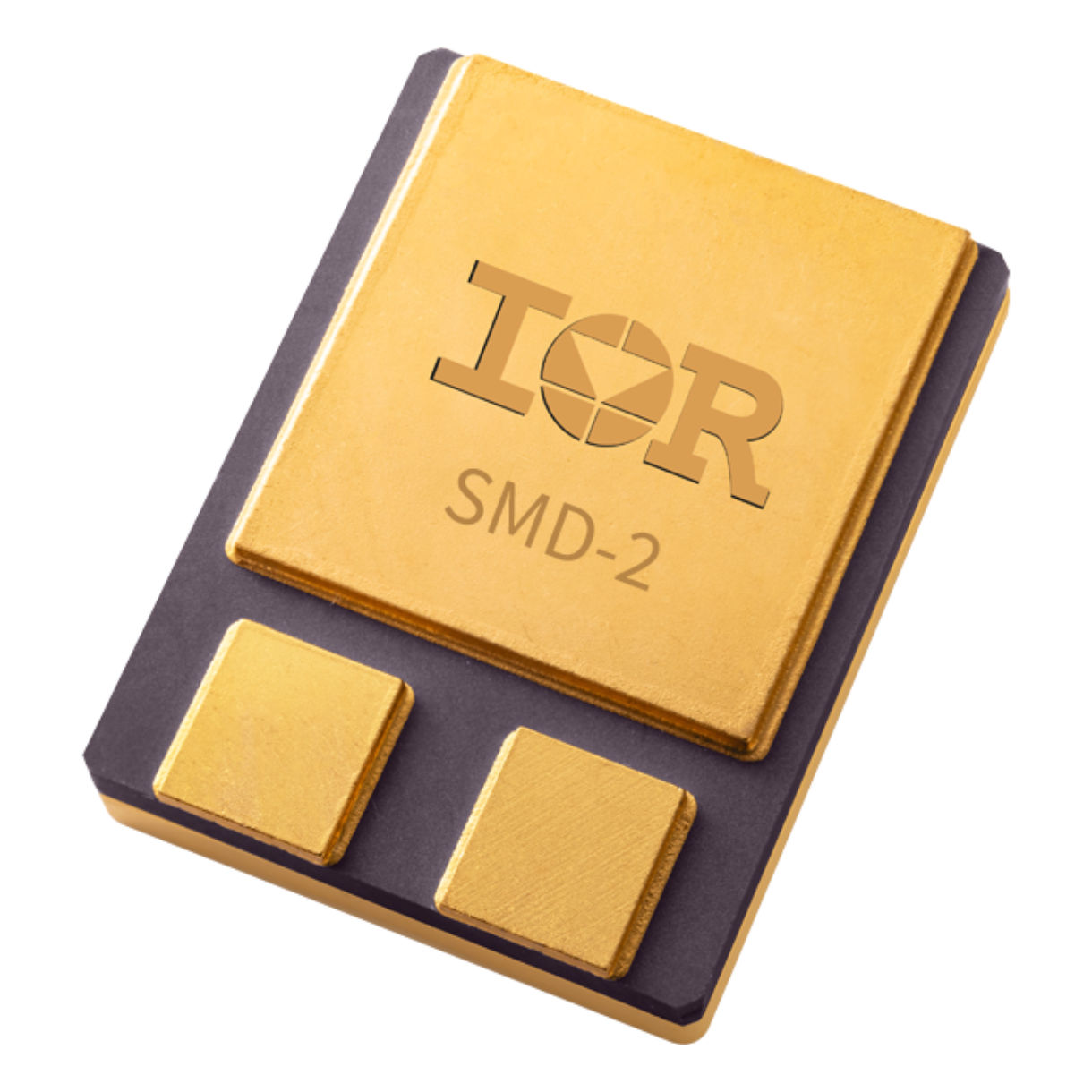

IRHNA67264SCS R6 MOSFET is a single rad hard N-channel MOSFET with 200V and 31.5A. QIRL rated in a compact SMD-2 package, it is designed for space applications. Electrical performance up to 100krad(Si) TID and LET up to 90 MeV·cm2/mg. Low RDS(on), low gate charge, and MOSFET advantages provide loss reduction and fast switching.
