IRHNA597Z60SCS
IRHNA597Z60SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • ESD Class
    Class 3A
  • Generation
    R5
  • ID (@100°C) max
    -56 A
  • ID (@25°C) max
    -56 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SMD-2
  • Polarity
    P
  • Product Category
    Rad hard MOSFETS
  • QG
    220 nC
  • QPL Part Number
    2N7523U2
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    13 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS min
    -30 V
  • VF max
    -5 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

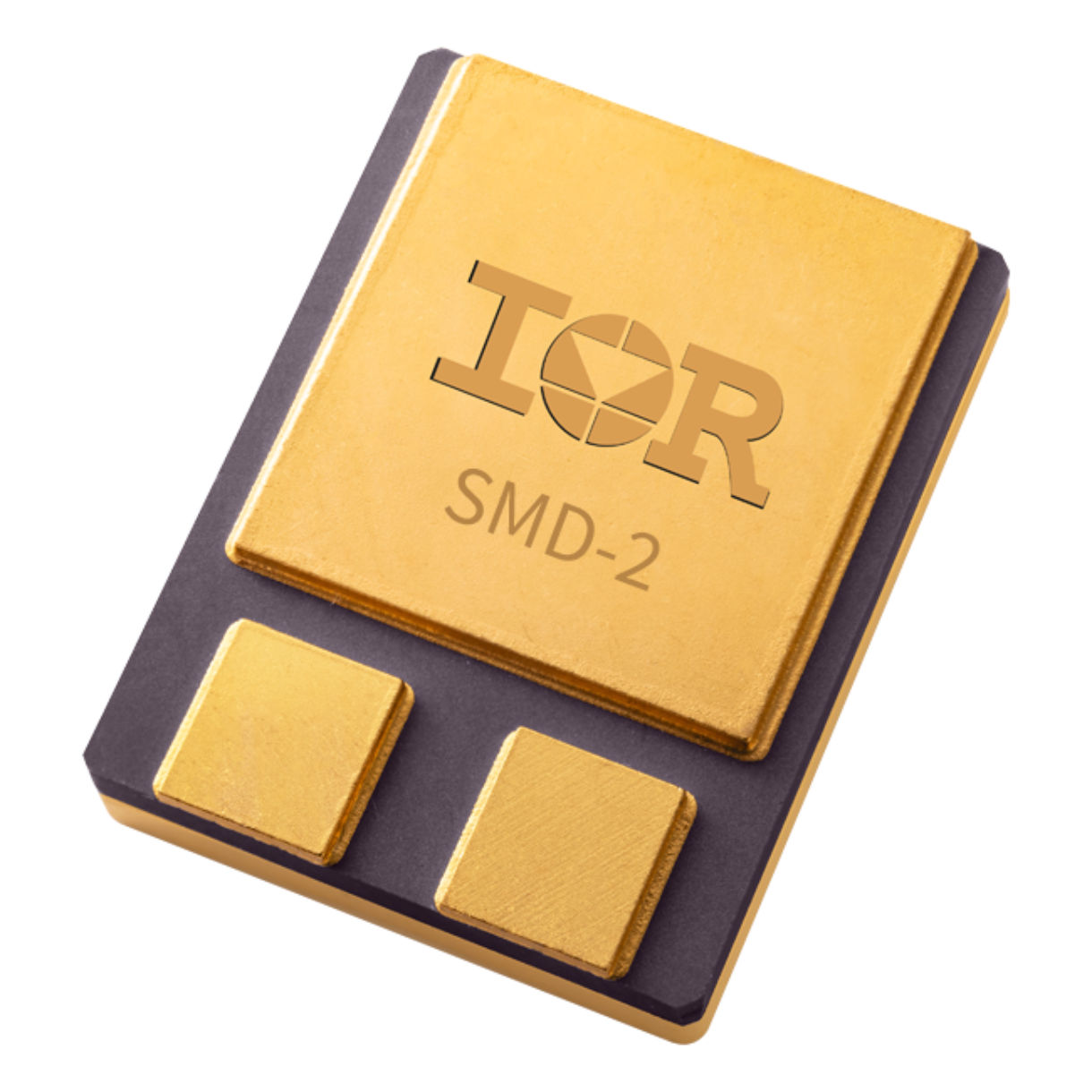

IRHNA597Z60SCS is a R5, rad hard, -30V, -56A, single, P-channel MOSFET in a SMD-2 package. It has a low RDS(on) and low gate charge resulting in minimal power losses, it can handle electrical performance up to 100krad(Si) TID and has QIRL classification, making it suitable for space applications.
