IRHNA597064SCS
IRHNA597064SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • Download Model
    https://www.infineon.com/cms/dgdl/Infineon-Spice_File_IRHNA597064-SimulationModels-v01_01-EN.spi?fileId=8ac78c8c84f2c0670184f4f4082f1172
  • ESD Class
    Class 3A
  • Generation
    R5
  • ID (@100°C) max
    -56 A
  • ID (@25°C) max
    -56 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SMD-2
  • Polarity
    P
  • Product Category
    Rad hard MOSFETS
  • QG
    200 nC
  • QPL Part Number
    2N7524U2
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    15 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS min
    -60 V
  • VF max
    -5 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

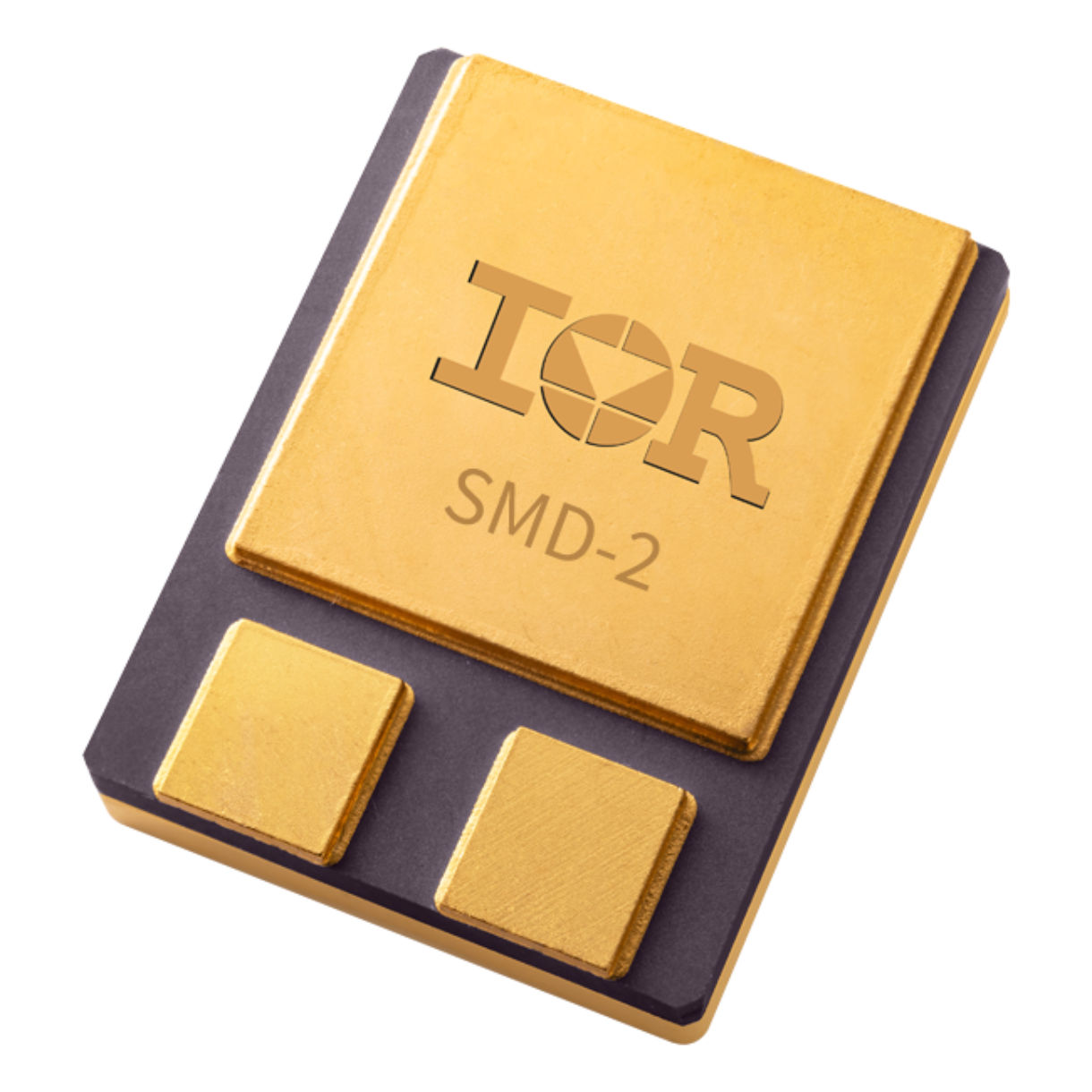

IRHNA597064SCS is a R5, rad hard, -60V, -56A, single, P-channel MOSFET in a SMD-2 package. It has electrical performance up to 100krad(Si) TID and QIRL classification. The device also has low RDS(on) and low gate charge, making it suitable for switching applications such as DC-DC converters and motor controllers, while retaining the advantages of MOSFETs.
