IRHLUB7970Z4SCS
IRHLUB7970Z4SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    Z
  • Download Model
    https://www.infineon.com/cms/dgdl/Infineon-Spice_File_IRHLUB7970Z4-SimulationModels-v01_01-EN.spi?fileId=8ac78c8c84f2c0670184f4efa1e11034
  • ESD Class
    Class 0
  • Generation
    R7
  • ID (@100°C) max
    -0.33 A
  • ID (@25°C) max
    -0.53 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    UB
  • Polarity
    P
  • Product Category
    Rad hard MOSFETS
  • QG
    3.6 nC
  • QPL Part Number
    2N7626UB
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    1300 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS min
    -60 V
  • VF max
    -5 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

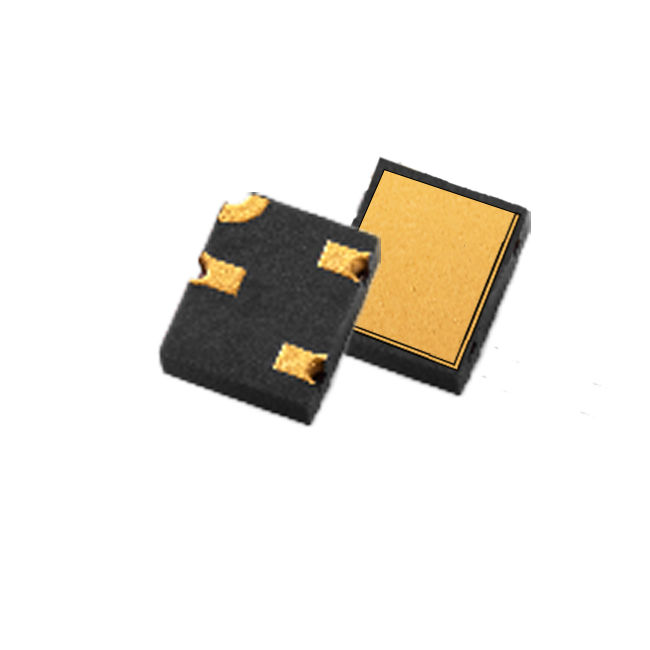

IRHLUB7970Z4SCS is a R7, rad hard, -60V, -0.53A, single, P-channel MOSFET in a UB package. It can operate in radiation environments with electrical performance up to 100krad(Si) TID, has QIRL classification and has immunity to single-event gate rupture and burnout. Suitable for interfacing various devices, it maintains acceptable threshold voltage over the operating temperature range.
