IRHLNJ793034SCS
IRHLNJ793034SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    3
  • ESD Class
    Class 2
  • Generation
    R7
  • ID (@100°C) max
    -14.9 A
  • ID (@25°C) max
    -22 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SMD-0.5
  • Polarity
    P
  • Product Category
    Rad hard MOSFETS
  • QG
    36 nC
  • QPL Part Number
    2N7624U3
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    72 mΩ
  • TID max
    300 Krad(Si)
  • VBRDSS min
    -60 V
  • VF max
    -5 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

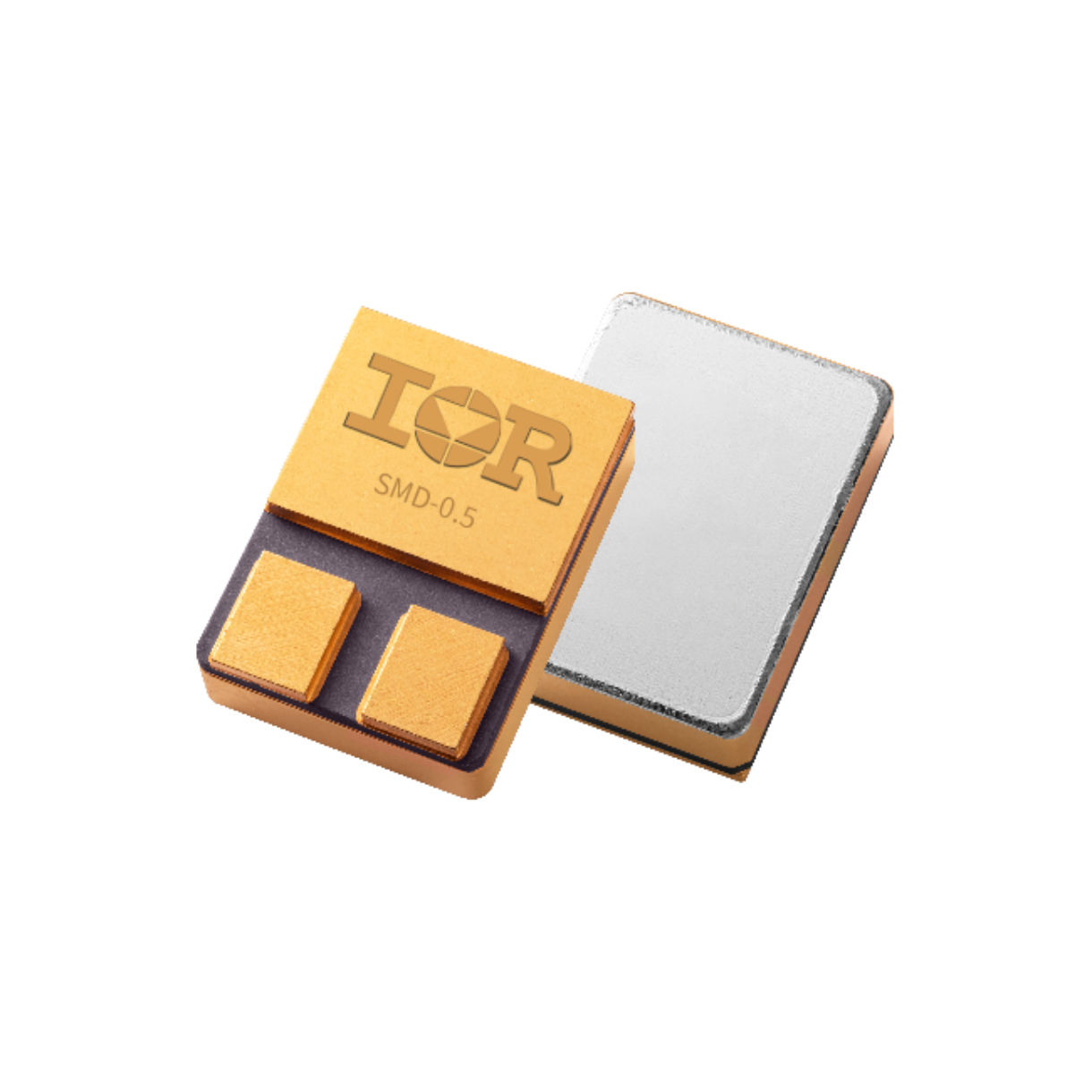

IRHLNJ793034SCS is a R7, rad hard, -60V, -22A, single, P-channel MOSFET in a SMD-0.5 package. With electrical performance up to 300krad(Si) TID and QIRL classification, it provides a simple solution to interfacing CMOS and TTL control circuits to power devices in space and other radiation environments. Ideal for interfacing with logic gates and microcontrollers, while maintaining immunity to single event gate rupture and burnout.
