IRFSL7534

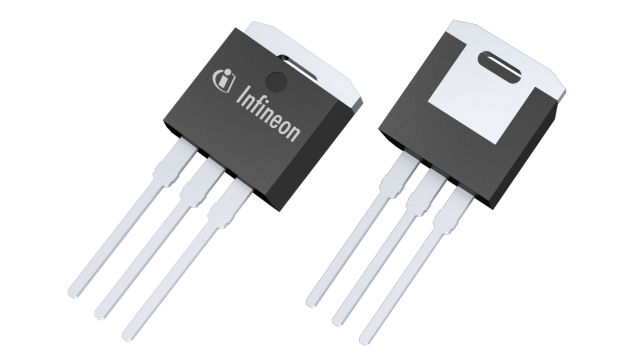

60V Single N-Channel StrongIRFET™ Power MOSFET in a TO-262 package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRFSL7534
IRFSL7534
Data Sheet

Product details

  • ID (@25°C) max
    232 A
  • Mounting
    THT
  • Package
    I2PAK (TO-262)
  • Polarity
    N
  • Ptot max
    294 W
  • Qgd
    56 nC
  • QG (typ @10V)
    186 nC
  • RDS (on) (@10V) max
    2.4 mΩ
  • RthJC max
    0.51 K/W
  • Tj max
    175 °C
  • VDS max
    60 V
  • VGS(th)
    2.9 V
  • VGS max
    20 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters. End-applications include cordless power and gardening tools, light electric vehicles and e-bikes demanding a high level of ruggedness and energy efficiency.

Features

  • High-current rating
  • Product qualification according to JEDEC standard
  • Silicon optimized for applications switching below <100 kHz
  • Softer body-diode compared to previous silicon generation
  • Industry standard through-hole power package
  • Optimized for broadest availability from distribution partners

Benefits

  • High current carrying capability
  • Reliable products tested to industry standards
  • High performance in low frequency applications
  • Increased power density
  • Standard pinout allows for drop in replacement
  • Wide availability from distribution partners

Applications
