IRF7483M

END OF LIFE
40V Single N-Channel StrongIRFET™ Power MOSFET in a DirectFET™ MF package
Data Sheet

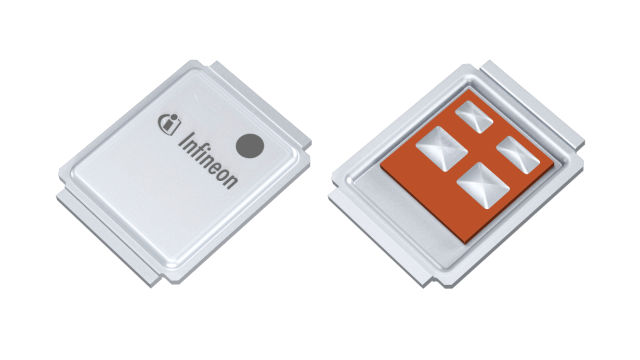

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRF7483M
IRF7483M
Data Sheet

Product details

  • ID (@25°C) max
    135 A
  • Micro-stencil
    IRF66MF-25
  • Moisture Sensitivity Level
    1
  • Mounting
    SMD
  • Package
    DirectFET(M)
  • Polarity
    N
  • Ptot max
    74 W
  • Qgd
    28 nC
  • QG (typ @10V)
    81 nC
  • RDS (on) (@10V) max
    2.3 mΩ
  • RthJC max
    1.7 K/W
  • Tj max
    150 °C
  • VDS max
    40 V
  • VGS(th)
    3 V
  • VGS max
    20 V
OPN
IRF7483MTRPBF
Product Status discontinued
Infineon Package
MG-WDSON-6
Package Name DirectFET MF
Packing Size 4800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
MG-WDSON-6
Package Name DirectFET MF
Packing Size 4800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters. End-applications include cordless power and gardening tools, light electric vehicles and e-bikes demanding a high level of ruggedness and energy efficiency.

Features

  • Dual-side cooling capability
  • Low package height of 0.7mm
  • Low parasitic (1-2 nH) inductance package
  • 100% lead-free (No ROHS exemption)
  • Silicon optimized for applications switching below <100KHz
  • Product qualification according to JEDEC standard
  • Optimized for broadest availability from distribution partners

Benefits

  • High power density
  • Low profile design
  • High efficiency
  • Environmentally friendly
  • High performance in low frequency applications
  • Industry standard qualification level
  • Wide availability from distribution partners

Applications
