IRF6810S

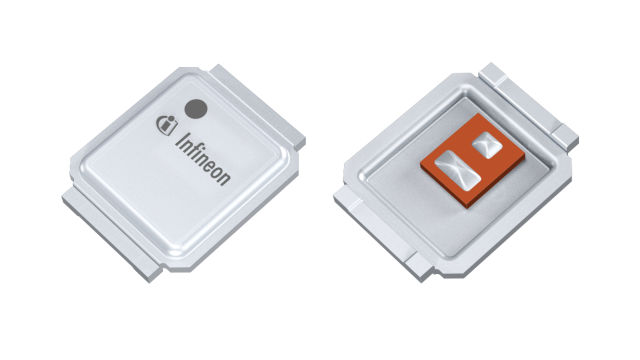

A 25V Single N-Channel HEXFET Power MOSFET in a DirectFET S1 package rated at 16 amperes optimized with low on resistance.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRF6810S
IRF6810S
Data Sheet

Product details

  • ID (@25°C) max
    50 A
  • Micro-stencil
    IRF66S1-25
  • Moisture Sensitivity Level
    1
  • Mounting
    SMD
  • Package
    DirectFET S1
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    2.1 W
  • Ptot max
    20 W
  • Qgd
    2.7 nC
  • QG (typ @4.5V)
    7.4 nC
  • RDS (on) (@10V) max
    5.2 mΩ
  • RDS (on) (@4.5V) max
    7.3 mΩ
  • RthJC max
    6.3 K/W
  • Tj max
    150 °C
  • VDS max
    25 V
  • VGS(th)
    1.6 V
  • VGS max
    16 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

Benefits

  • RoHS Compliant
  • 100% Rg tested
  • Low Profile (less than 0.7 mm)
  • Dual Sided Cooling
  • Optimized for Control FET Applications
  • Optimized for High Frequency Switching
  • Low Package Inductance
