IRF6637

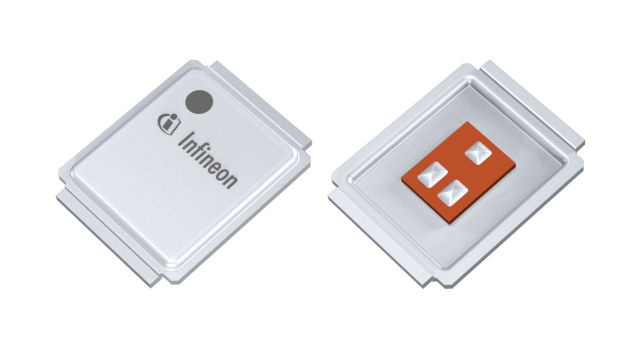

30V Single N-Channel Power MOSFET in a DirectFET™ MP package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRF6637
IRF6637
Data Sheet

Product details

  • ID (@25°C) max
    59 A
  • Micro-stencil
    IRF66MP-25
  • Moisture Sensitivity Level
    1
  • Mounting
    SMD
  • Package
    DirectFET(M)
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    2.3 W
  • Ptot max
    89 W
  • Qgd
    4 nC
  • QG (typ @4.5V)
    11 nC
  • RDS (on) (@10V) max
    7.7 mΩ
  • RDS (on) (@4.5V) max
    10.8 mΩ
  • RthJC max
    3 K/W
  • Tj max
    150 °C
  • VDS max
    30 V
  • VGS(th)
    1.8 V
  • VGS max
    20 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Features

  • Optimized for broadest availability from distribution partners
  • Product qualification according to JEDEC standard
  • High-current rating
  • Dual-side cooling capability
  • Low package height of 0.7mm
  • Low parasitic (1-2 nH) inductance package
  • 100% lead-free (No RoHS exemption)

Benefits

  • Wide availability from distribution partners
  • Industry standard qualification level
  • High current carrying capability
  • Optimum thermal performance
  • Compact form factor
  • High efficiency
  • Environmentally friendly

Applications
