Active and preferred
RoHS Compliant

IPU80R900P7

A new benchmark in efficiency and thermal performance
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPU80R900P7
IPU80R900P7
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.41
  • ID max
    6 A
  • ID (@25°C) max
    6 A
  • IDpuls max
    14 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    IPAK
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    45 W
  • Qgd
    6 nC
  • QG
    15 nC
  • QG (typ @10V)
    15 nC
  • RDS (on) max
    900 mΩ
  • RDS (on) (@10V) max
    900 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    2.8 K/W
  • Rth
    2.8 K/W
  • Special Features
    price/performance
  • VDS max
    800 V
  • VGS(th)
    3 V
Recommended
OPN
IPU80R900P7AKMA1
Product Status active and preferred

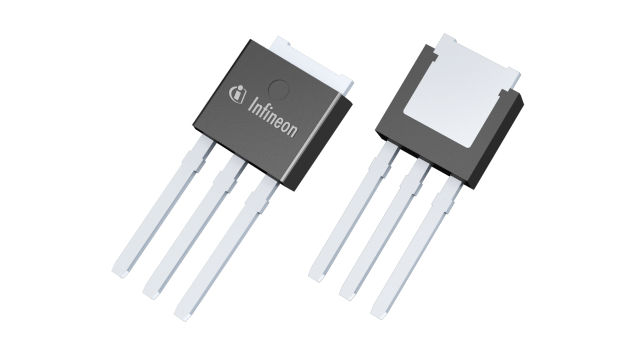

Infineon Package
PG-TO251-3
Package Name IPAK
Packing Size 1500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO251-3
Package Name IPAK
Packing Size 1500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
With the 800 V CoolMOS™ P7 series, Infineon sets a benchmark in 800 V superjunction technologies and combines best-in-class performance with state-of-the-art ease of use. Robust gate module, body diode, and fast and clean switching are the features that make the product family a perfect fit for flyback-based consumer SMPS applications. It is also suitable for consumer PFC stages, solar, adapter, audio, lighting applications.

Features

  • CoolMOS™ 7 series
  • low gate charge
  • low stored energy in COSS
  • integrated gate resistor
  • Fieldproven CoolMOS™ quality
  • CoolMOS™ since 1998

Benefits

  • better control
  • high efficiency @ hard switching
  • higher power density
  • MOSFET suits hard & resonant topologies

Applications
