Active and preferred
RoHS Compliant

IPTG025N15NM6

OptiMOS™ 6 power MOSFET 150 V normal level in TOLG package for higher thermal cycling on board performance
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPTG025N15NM6
IPTG025N15NM6
ea.
Data Sheet

Product details

  • ID (@25°C) max
    264 A
  • IDpuls max
    1056 A
  • Operating Temperature
    -55 °C to 175 °C

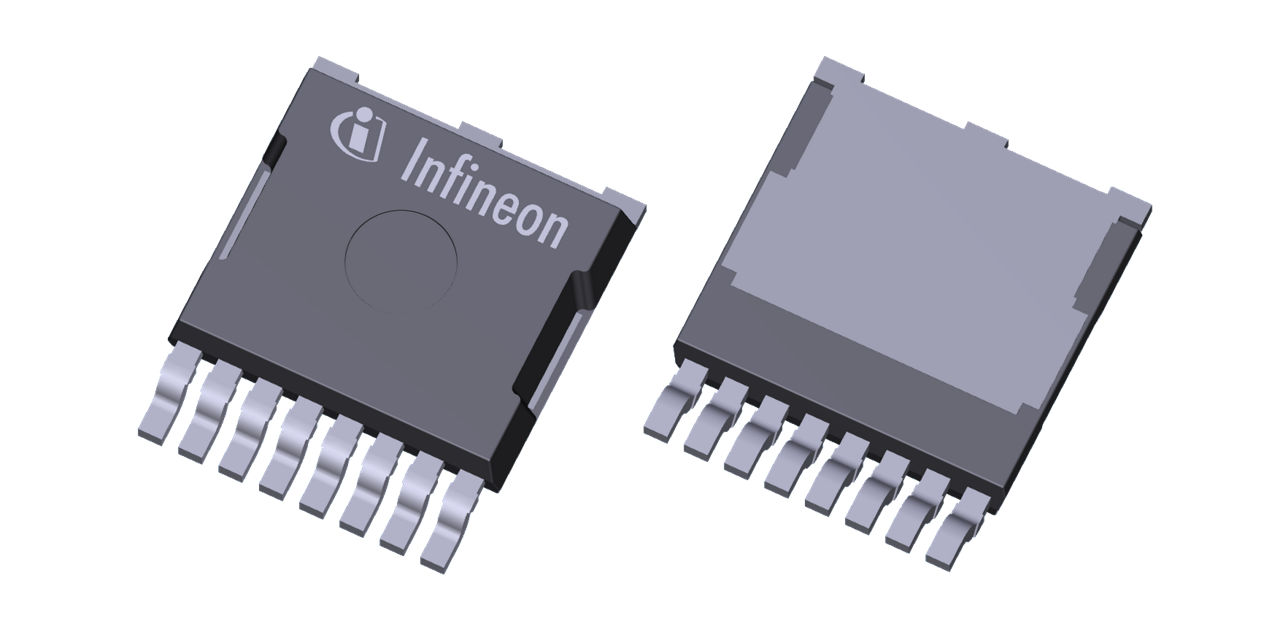

  • Package
    TOLG (HSOG-8)
  • Polarity
    N
  • Ptot max
    395 W
  • QG (typ @10V)
    105 nC
  • RDS (on) (@10V) max
    2.5 mΩ
  • VDS max
    150 V
  • VGS(th)
    3.5 V
Recommended
OPN
IPTG025N15NM6ATMA1
Product Status active and preferred
Infineon Package
PG-HSOG-8
Package Name TOLG
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSOG-8
Package Name TOLG
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • 36% lower RDS(on) than OptiMOS™ 5
  • Industry's lowest Qrr in 150 V
  • Improved diode softness vs OptiMOS™ 5
  • Tight Vgs(th) spread of +/-500 mV
  • High avalanche ruggedness
  • Gullwing leads
  • High current rating
  • Max Tj of 175°C and MSL1

Benefits

  • Low conduction and switching losses
  • Stable operation with improved EMI
  • Better current sharing when paralleling
  • Superior power handling capability
  • Enhanced robustness
  • Optimized PCB area utilization
  • Improved system reliability
