Active and preferred
RoHS Compliant

IPTC068N20NM6

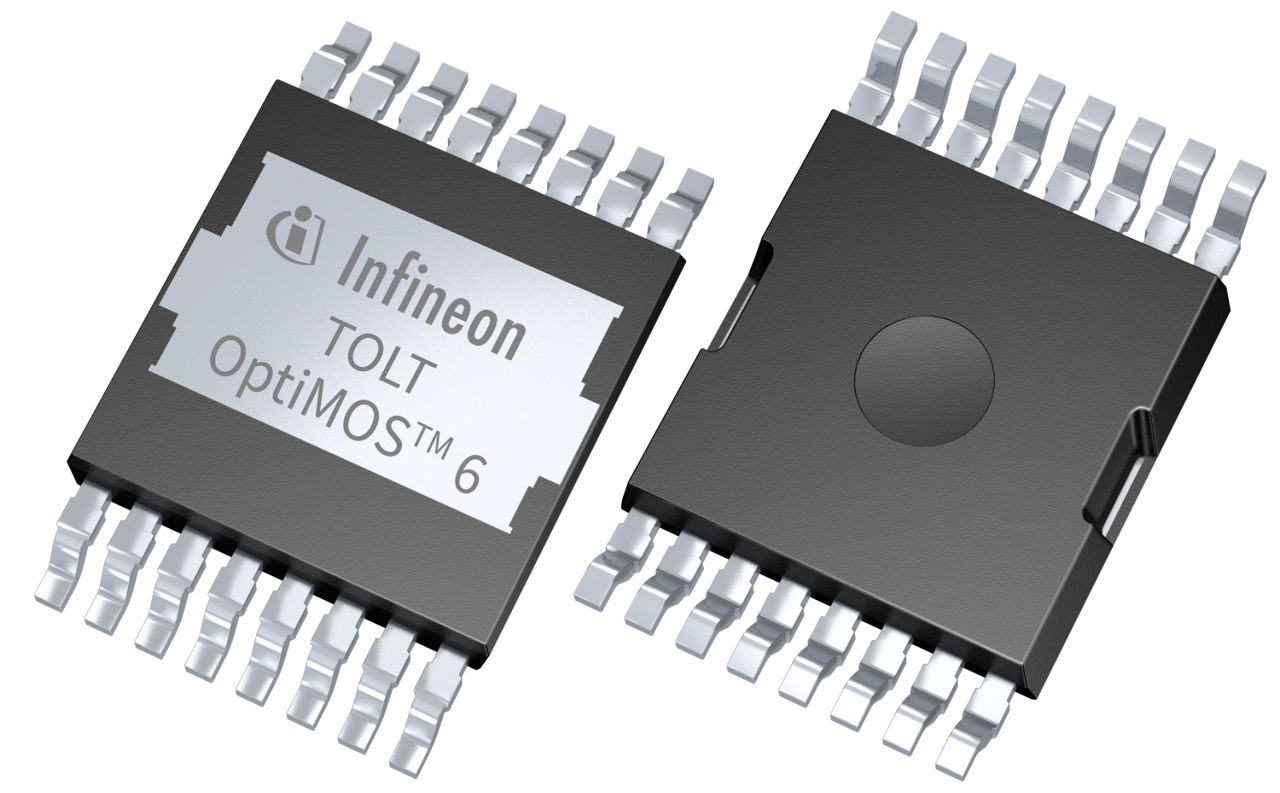

OptiMOS™ 6 power MOSFET 200 V normal level in TOLT package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPTC068N20NM6
IPTC068N20NM6
ea.
Data Sheet

Product details

  • ID (@25°C) max
    140 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    TOLT (HDSOP-16)
  • Polarity
    N
  • QG (typ @10V)
    71 nC
  • RDS (on) (@10V) max
    6.8 mΩ
  • VDS max
    200 V
  • VGS(th)
    3.7 V
Recommended
OPN
IPTC068N20NM6ATMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-16
Package Name TOLT
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HDSOP-16
Package Name TOLT
Packing Size 1800
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IPTC068N20NM6 leverages the advanced cell design of the OptiMOS™ 6 200 V technology to provide suitable alternative to legacy OptiMOS™ 3 and OptiMOS™ FD products. OptiMOS™ 6 200 V was designed to fulfill the requirements of a wide range of applications: from static switching to high frequency in hard and soft switching applications. Highest power density can be achieved with the combination of the TOLT package and the OptiMOS™ 6 technology.

Features

  • Industries lowest RDS(on) in 200 V
  • Industries lowest Qrr in 200 V
  • Compared to previous 200 V technology
  • Up to 42% lower RDS(on)
  • Up to 89% lower Qrr(typ)
  • 36% lower FOMg
  • More than 3 times softer diode
  • Improved capacitance linearity
  • Improved SOA
  • Tight Vgs(th) spread of +/- 750 mV
  • High avalanche ruggedness
  • Max Tj of 175°C and MSL1

Benefits

  • Low conduction and switching losses
  • Stable operation with improved EMI
  • Better current sharing when paralleling
  • Enhanced robustness
  • Improved system reliability
