IPSA70R950CE

Best price-performance superjunction MOSFET for consumer and lighting applications
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPSA70R950CE
IPSA70R950CE
Data Sheet

Product details

  • ID max
    8.7 A
  • ID (@25°C) max
    8.7 A
  • IDpuls max
    12 A
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 150 °C

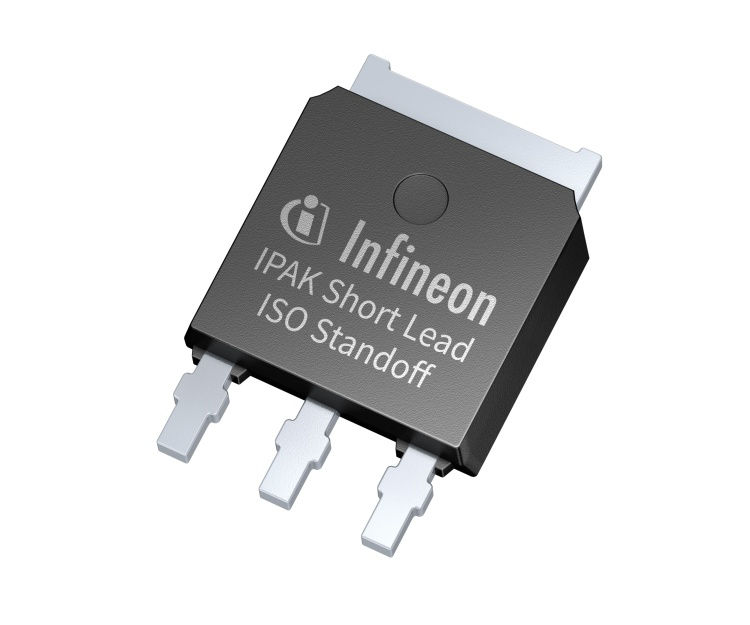

  • Package
    IPAK SL ISO-Standoff
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    94 W
  • Qgd
    8 nC
  • QG
    15.3 nC
  • QG (typ @10V)
    15.3 nC
  • RDS (on) max
    950 mΩ
  • RDS (on) (@10V) max
    950 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    1.33 K/W
  • Rth
    1.33 K/W
  • Special Features
    price/performance
  • VDS max
    700 V
  • VGS(th)
    2.5 V to 3.5 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
CoolMOS™ CE is a technology platform of Infineon´s market leading high voltage power MOSFET designed according to the superjunction principle (SJ) and conceived to fulfill consumer requirements. With the extended family, Infineon offers 600V, 650V and 700V devices targeting low power chargers for mobile devices and power tools, LCD , LED TV and LED lighting applications.

Features

  • Thermal behavior
  • ≤ 90°C on device, open case
  • ≤ 50°C/70°C close case temperature
  • EMI within EN55022B standard
  • Ease of use and fast design-in

Benefits

  • Low conduction losses from large margin between R DS(on) typical to nominal
  • Low switching losses from optimized output capacitance (E oss)
  • Optimized EMI to balance switching speed and EMI behavior
  • Good controllability given the integrated R g

Applications
