IPS60R600PFD7S

END OF LIFE

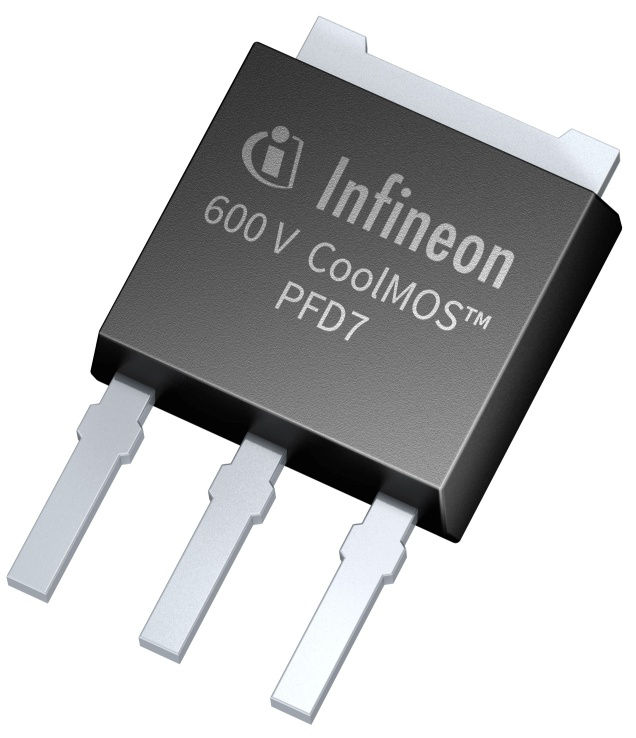

600V CoolMOS™ PFD7 superjunction MOSFET in TO-251 IPAK short-lead package
Data Sheet
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPS60R600PFD7S
IPS60R600PFD7S
View replacement
Data Sheet

Product details

  • ID (@25°C) max
    6 A
  • ID max
    6 A
  • IDpuls max
    14 A
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    IPAK
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    31 W
  • QG
    8.5 nC
  • QG (typ @10V)
    8.5 nC
  • RDS (on) (@10V) max
    600 mΩ
  • RDS (on) max
    600 mΩ
  • Special Features
    price/performance
  • VDS max
    600 V
  • VGS(th)
    4 V
OPN
IPS60R600PFD7SAKMA1
Product Status discontinued
Infineon Package PG-TO251-3
Package Name IPAK
Packing Size 1500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package PG-TO251-3
Package Name IPAK
Packing Size 1500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 600V CoolMOS™ PFD7 superjunction MOSFET (IPS60R600PFD7S) complements the CoolMOS™ 7 offering for consumer applications. The IPS60R600PFD7S in a TO-251 IPAK SL package features RDS(on) of 600mOhm resulting in low switching losses. The products come with a fast body diode ensuring a robust device and in turn reduced bill-of-material (BOM) for the customer. This product family is tailored to ultrahigh power density as well as highest efficiency designs. The products primarily address ultrahigh density chargers, adapters and low-power motor drives. The 600V CoolMOS™ PFD7 offers improved light- and full-load efficiency over CoolMOS™ P7 and CE technologies resulting in  an increase in power density by 1.8W/inch3.

Features

  • Very low FOM RDS(on) x Eoss
  • Integrated robust fast body diode
  • Up to 2kV ESD protection
  • Wide range of RDS(on) values
  • Excellent commutation ruggedness
  • Low EMI
  • Broad package portfolio

Benefits

  • Minimized switching losses
  • Power density improvement compared to latest CoolMOS™ charger technology
  • Increased efficiency and improved thermal behavior compared to CoolMOS™ CE technology for low power drives applications
  • BOM cost reduction and easy manufacturing
  • Robustness and reliability
  • Easy to select the right parts for design fine-tuning

Applications
