IPP50R500CE
IPP50R500CE
Data Sheet

Product details

  • ID (@25°C) max
    7.6 A
  • ID max
    7.6 A
  • IDpuls max
    24 A
  • Mounting
    THT
  • Operating Temperature min
    -55 °C

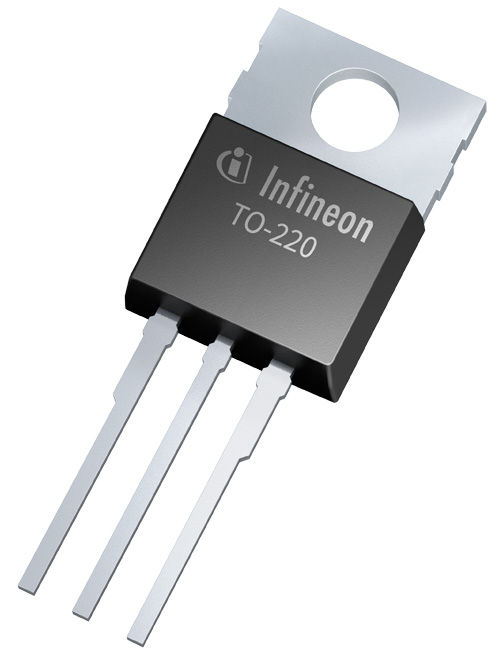

  • Package
    TO-220
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    57 W
  • QG
    18.7 nC
  • QG (typ @10V)
    18.7 nC
  • RDS (on) max
    500 mΩ
  • RDS (on) (@10V) max
    500 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    2.19 K/W
  • Rth
    4.46 K/W
  • VDS max
    500 V
  • VGS(th)
    2.5 V to 3.5 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
500V CoolMOS™ CE is a price-performance optimized platform enabling to target cost sensitive applications in consumer and lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.

Features

  • Reduced energy stored in output capacitance (E oss)
  • High body diode ruggedness
  • Reduced reverse recovery charge (Q rr )
  • Reduced gate charge (Q g )

Benefits

  • Easy control of switching behavior
  • Better light load efficiency compared to previous CoolMOS™ generations
  • Cost attractive alternative compared to standard MOSFETs
  • Outstanding quality and reliability of CoolMOS™ technology

Applications
