IPP50R399CP
IPP50R399CP
Data Sheet

Product details

  • Budgetary Price €/1k
    0.87
  • ID (@25°C) max
    9 A
  • ID max
    9 A
  • IDpuls max
    20 A
  • Mounting
    THT
  • Operating Temperature min
    -55 °C

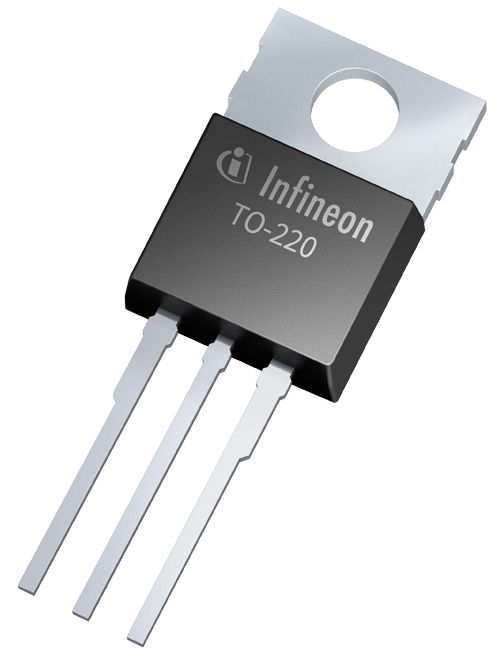

  • Package
    TO-220
  • Polarity
    N
  • Ptot max
    83 W
  • QG
    17 nC
  • QG (typ @10V)
    17 nC
  • RDS (on) max
    399 mΩ
  • RDS (on) (@10V) max
    399 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    1.5 K/W
  • Rth
    1.5 K/W
  • VDS max
    500 V
  • VGS(th)
    2.5 V to 3.5 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
CoolMOS™ CP, Infineon's fifth series of CoolMOS™, is designed for hard and soft switching topologies, CCM PFC as well as PWM for ATX, notebook adapter PDP and LCD TV.

Features

  • Lowest figure of merit R on x Q g
  • Ultra low gate charge
  • Extreme dv/dt rate
  • Ultra low R DS(on), ultra low gate charge, very fast switching
  • V th 3 V, g fs very high, internal R g very low
  • High current capability
  • Significant reduction of conduction and switching losses
  • High power density and efficiency for superior power conversion systems
  • Best-in-class price/performance ratio
