IPF019N10NM8

NEW

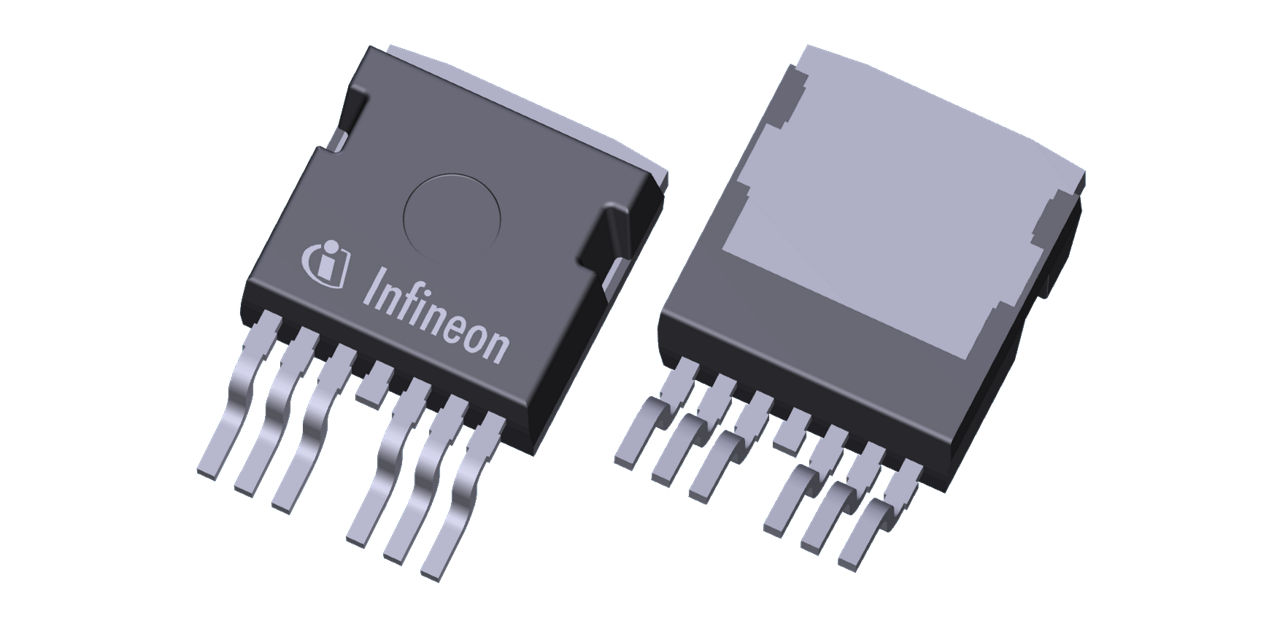

OptiMOS™ 8 power MOSFET 100 V Normal Level in D2PAK-7
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPF019N10NM8
IPF019N10NM8
Data Sheet

Product details

  • ID (@25°C) max
    259 A
  • IDpuls max
    1036 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    D2PAK 7pin (TO-263 7pin)
  • Polarity
    N
  • Ptot max
    300 W
  • QG (typ @10V)
    123 nC
  • RDS (on) (@10V) max
    1.99 mΩ
  • VDS max
    100 V
  • VGS(th)
    2.8 V
Recommended
OPN
IPF019N10NM8ATMA1
Product Status active and preferred
Infineon Package
PG-TO263-7
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TO263-7
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • Very low on-resistance RDS(on)
  • High ID current rating
  • Tight VGS(th) spread
  • Soft body diode recovery and low Qrr>
  • 100% avalanche tested
  • Pb-free lead plating; RoHS compliant
  • Halogen-free according to IEC61249-2-21
  • MSL 1 classified according to J-STD-020
  • N-channel, normal level

Benefits

  • Best price/performance technology
  • Lowest conduction losses
  • Improved current sharing
  • Excellent switching, soft body diode
  • Ease of use
