Active and preferred
RoHS Compliant

IPD040N08NF2S

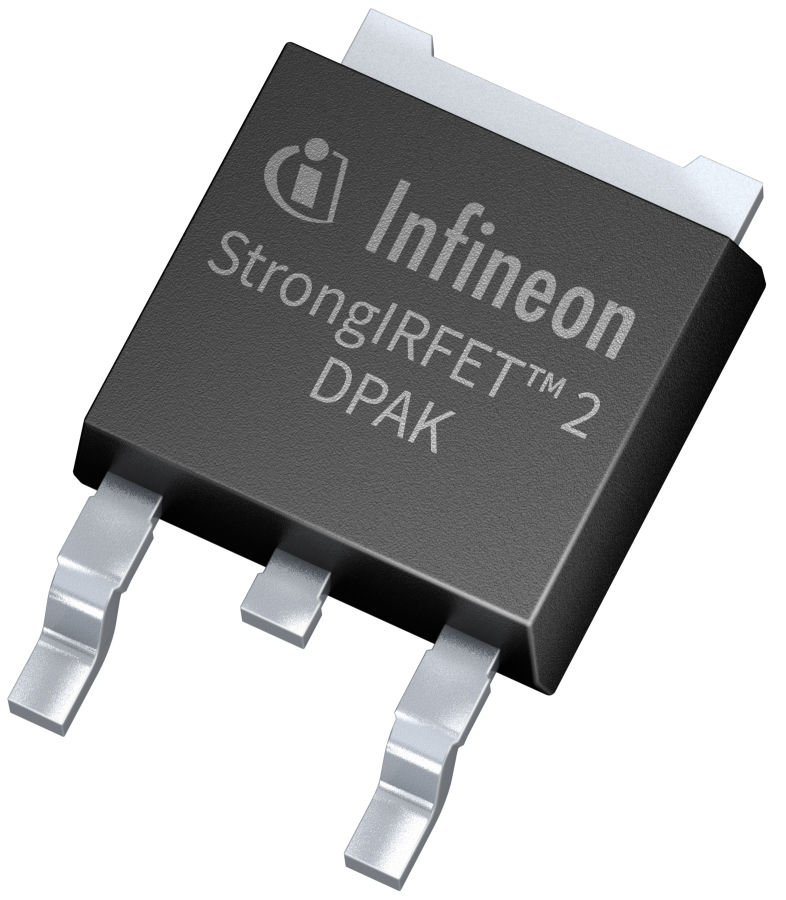

StrongIRFET™ 2 single N-channel power MOSFET 80 V in DPAK
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPD040N08NF2S
IPD040N08NF2S
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.7
  • ID (@25°C) max
    129 A
  • ID max
    129 A
  • IDpuls max
    516 A
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    DPAK (TO-252)
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    150 W
  • QG (typ @10V)
    54 nC
  • QG
    54 nC
  • RDS (on) (@10V) max
    4 mΩ
  • RDS (on) max
    4 mΩ
  • VDS max
    80 V
  • VGS(th)
    3 V
Recommended
OPN
IPD040N08NF2SATMA1
Product Status active and preferred
Infineon Package
PG-TO252-3
Package Name DPAK
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-3
Package Name DPAK
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Infineon's StrongIRFET™ 2 power MOSFET 80 V features low RDS(on) of 4.0 mOhm, addressing a broad range of applications from low- to high-switching frequency. Compared to the previous technology the IPD040N08NF2S achieves 40 percent lower RDS(on) and over 50 percent Qg improvement.

Features

  • Availability from distribution partners
  • Excellent price/performance ratio
  • Ideal for high & low switching frequency
  • Industry standard footprint package
  • High current rating
  • Capable of wave-soldering

Benefits

  • Multi-vendor compatibility
  • Right-fit products
  • Supports a wide variety of applications
  • Standard pinout for drop-in replacement
  • Increased current carrying capability
  • Ease of manufacturing

Applications
