END OF LIFE
discontinued
RoHS Compliant

IPB240N03S4L-R8

END OF LIFE
30 V, N-Ch, 0.76 mΩ max, Automotive MOSFET, D2PAK 7pin, OptiMOS™-T2
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPB240N03S4L-R8
IPB240N03S4L-R8
Data Sheet

Product details

  • Budgetary Price €/1k
    2.05
  • ID (@25°C) max
    240 A
  • IDpuls max
    960 A
  • Operating Temperature
    -55 °C to 175 °C

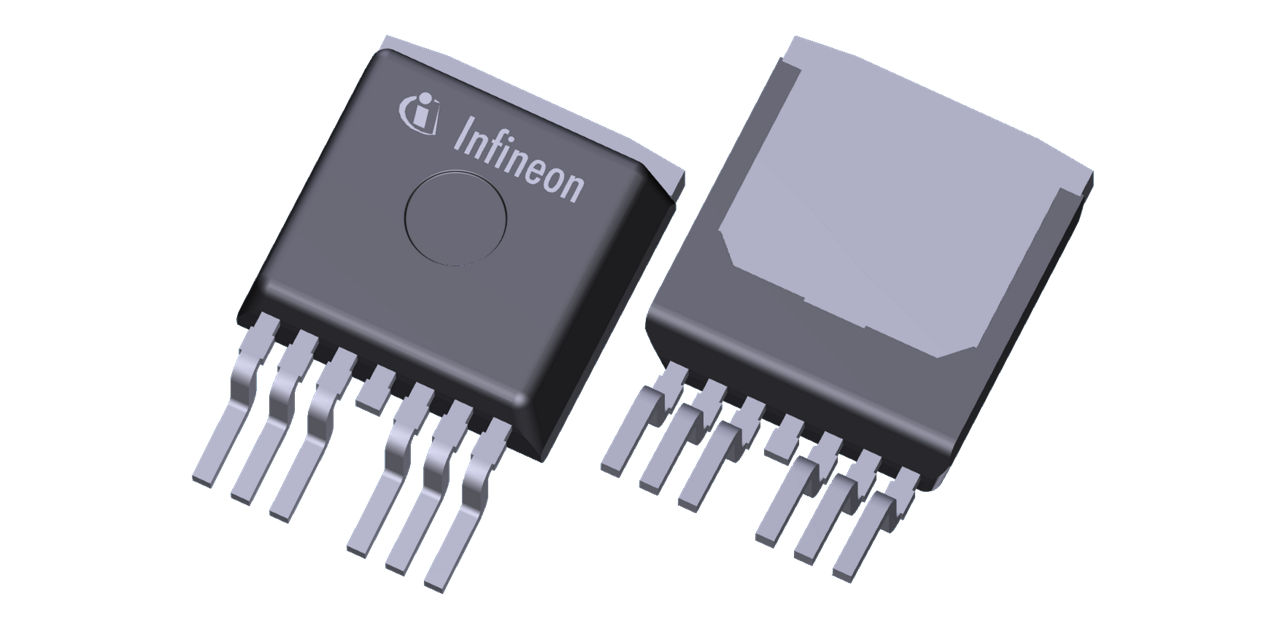

  • Package
    D2PAK (PG-TO263-7)
  • Polarity
    N
  • Ptot max
    300 W
  • QG (typ @10V) max
    290 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    0.76 mΩ
  • RthJC max
    0.5 K/W
  • Technology
    OptiMOS™-T2
  • VDS max
    30 V
  • VGS(th)
    1 V to 2.2 V
OPN
IPB240N03S4LR8ATMA1
Product Status discontinued
Infineon Package
PG-TO263-7
Package Name D2PAK7P
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-TO263-7
Package Name D2PAK7P
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • N-channel - Enhancement mode
  • AEC qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device

Applications
