IPB055N03L G
IPB055N03L G
Data Sheet

Product details

  • ID max
    50 A
  • IDpuls max
    350 A
  • Mounting
    SMD
  • Operating Temperature
    -55 °C to 175 °C

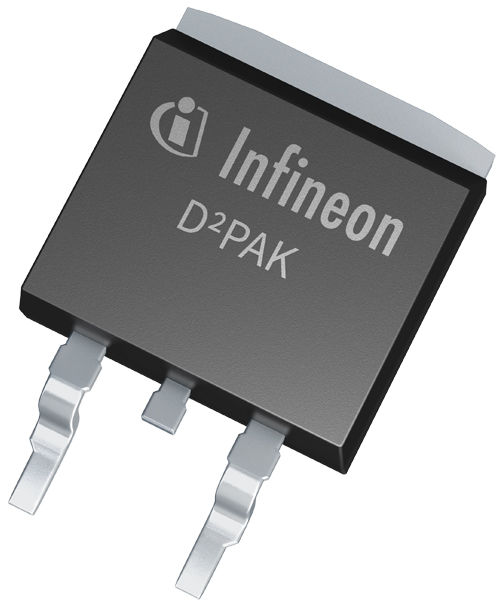

  • Package
    D2PAK (TO-263)
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    68 W
  • QG (typ @4.5V)
    15 nC
  • QG (typ @10V)
    31 nC
  • RDS (on) (@10V) max
    5.5 mΩ
  • RDS (on) (@4.5V) max
    7.8 mΩ
  • RDS (on) (@4.5V LL) max
    7.8 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    2.2 K/W
  • Rth
    2.2 K/W
  • VDS max
    30 V
  • VGS(th)
    1 V to 2.2 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance in small footprint packages
  • Easy to design in

Benefits

  • Increased battery lifetime
  • Improved EMI behavior making external snubber networks obsolete
  • Saving costs
  • Saving space
  • Reducing power losses

Applications
