IM818-LCC

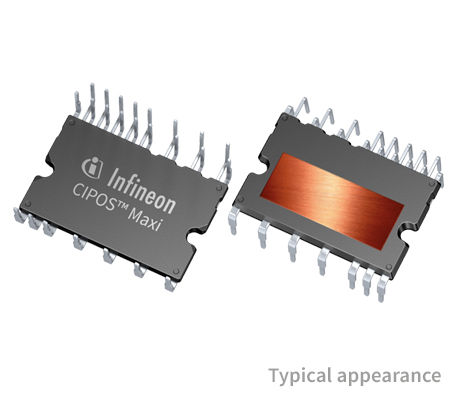

CIPOS™ Maxi 1200 V, 15 A three-phase intelligent power module
Data Sheet
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM818-LCC
IM818-LCC
ea.
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    Yes
  • Configuration
    3 Phase Open Emitter
  • Encryption
    no
  • IC (@ 25°)
    20 A
  • Language
    PLECS
  • Pmot (10kHz)
    3 kW
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Maxi
  • Product Name
    IM818-LCC
  • Qualification
    Industrial
  • Rated Current
    15 A
  • Switch Type
    IGBT
  • Voltage Class
    1200 V
Recommended
OPN
IM818LCCXKMA1
Product Status active and preferred
Infineon Package N/A
Package Name DIP 36x23DA
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name DIP 36x23DA
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CIPOS™ Maxi 1200 V, 15 A three-phase IGBT based intelligent power module with open emitter in DIP 36x23D package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including industrial drives, fans and pumps, HVAC outdoor fan, active filters, and etc.

Features

  • Based on TRENCHSTOP™ IGBT4
  • Motor power rating < 3 kW @10 kHz
  • Rugged 1200 V SOI gate driver
  • Stability against transient
  • Over current shutdown
  • Under-voltage lockout
  • All switches turn off during prote.
  • Cross-conduction prevention
  • UL-certified
