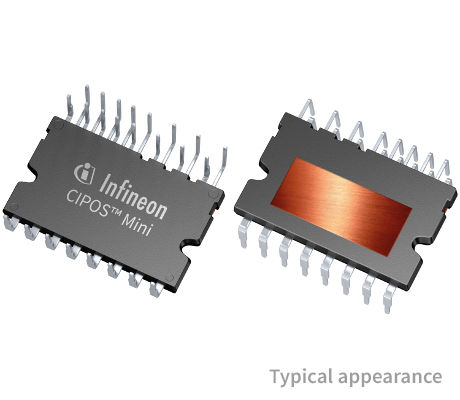

IM535-U6D

CIPOS™ Mini 600 V, 30 A three-phase intelligent power module
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM535-U6D
IM535-U6D
ea.
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    Yes
  • Configuration
    3 Phase Open Emitter
  • Encryption
    No
  • Pmot (10kHz)
    3000 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Mini
  • Product Name
    IM535-U6D
  • Qualification
    Industrial
  • Rated Current
    30 A
  • Switch Type
    IGBT
  • Voltage Class
    600 V
Recommended
OPN
IM535U6DXKMA1
Product Status active and preferred
Infineon Package
N/A
Package Name DIP 36x21D
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
N/A
Package Name DIP 36x21D
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CIPOS™ Mini 600 V, 30 A three-phase TRENCHSTOP™ IGBT based intelligent power module with open emitter in DIP 36x21D package. It provides fully featured compact inverter solution with DCB substrate to enable excellent thermal performance. Moreover, it enables higher power capability based on Infineon’s leading-edge TRENCHSTOP™ IGBTs and anti-parallel diodes together with optimized SOI gate driver along with excellent thermal conduction and electrical isolation.Coming soon: EVAL-M1-IM535

Features

  • Based on TRENCHSTOP™ IGBT
  • 30 A of inverter current rating
  • Rugged SOI gate driver technology
  • Integrated bootstrap function
  • Over current shutdown
  • All switches turn off during prote.
  • Undervoltage lockout at all chan.
  • Sleep function
  • Cross-conduction prevention
  • Built-in temperature monitoring
  • Motor power rating < 3 kW @10 kHz
  • UL certified
