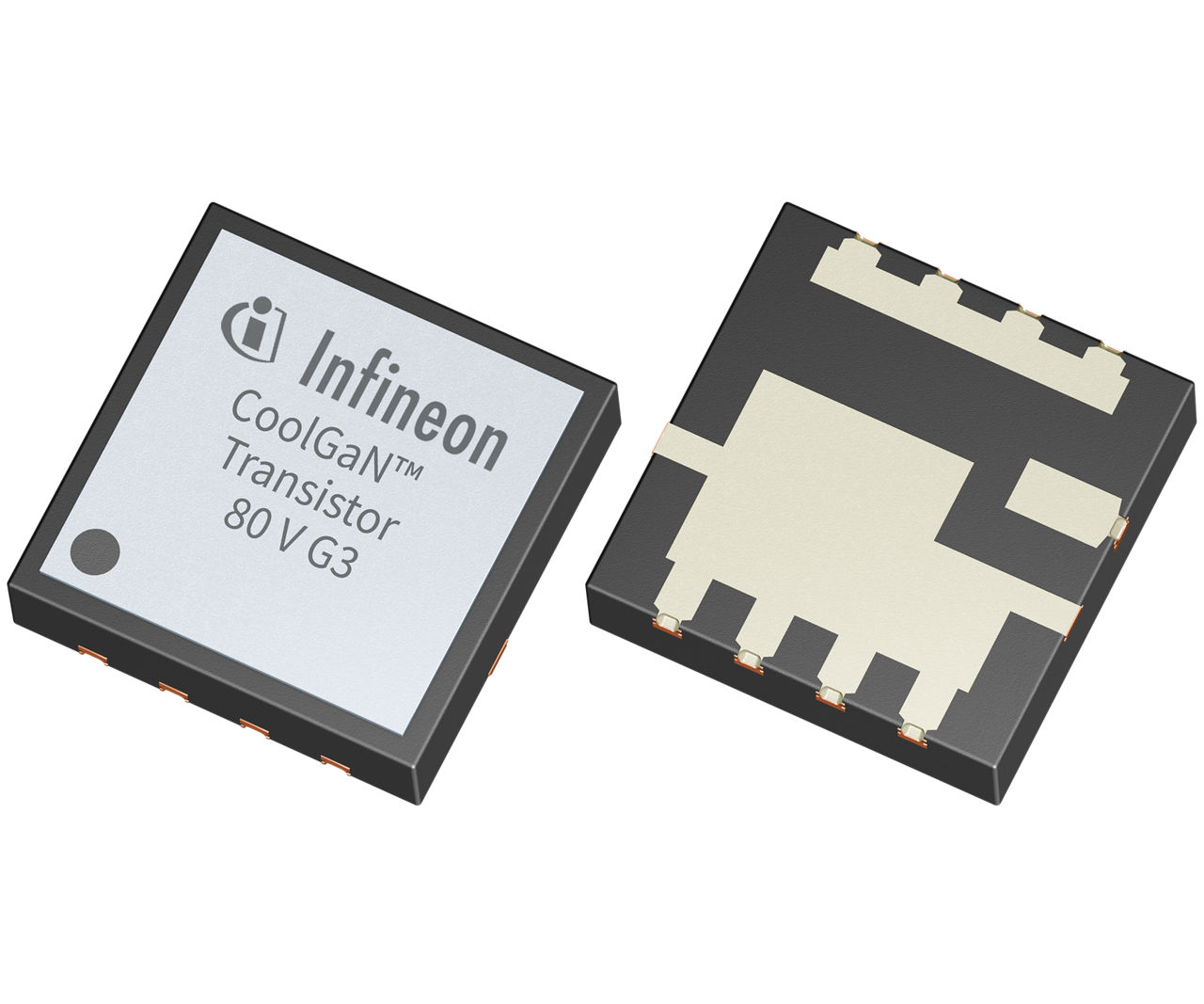

CoolGaN™ Transistor 80 V G3 in 3.3x3.3 mm RQFN package, 2.6 mΩ
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGE033S08S1
IGE033S08S1

Product details

  • Family
    CoolGaN™ Transistor 80 V G3
  • ID (@25°C) max
    60 A
  • IDpuls (@25°C) max
    470 A
  • Package
    RQFN 3.3x3.3
  • Planned to be available until at least
    2035
  • QG
    9 nC
  • Qualification
    Industrial
  • RDS (on) (typ)
    2.6 mΩ
  • VDS max
    80 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The IGE033S08S1 is a 80 V normally-off e-mode power transistor housed in a Si-footprint-compatible RQFN 5x6 package, enabling high-power-density designs. Thanks to its very low on-state resistance, it is the ideal choice for reliable performance in demanding high-voltage and high-current applications.

Features

  • 80 V e-mode power transistor
  • Dual-side cooled package
  • Ultrafast switching frequency
  • No reverse recovery charge
  • Reverse conduction capability
  • Ultralow gate and output charge
  • Qualfied according to JEDEC
  • Moisture rating MSL1

Benefits

  • Best-in-class power density
  • Highest efficiency
  • Improved thermal management
  • Enabling smaller and lighter designs
  • Excellent reliability
  • Lowering BOM cost

Applications
