IDM02G120C5

1200 V Silicion Carbide Schottky diode in a DPAK real2pin package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDM02G120C5
IDM02G120C5
ea.
Data Sheet

Product details

  • I(FSM) max
    37 A
  • IF max
    2 A
  • IR
    1.2 µA

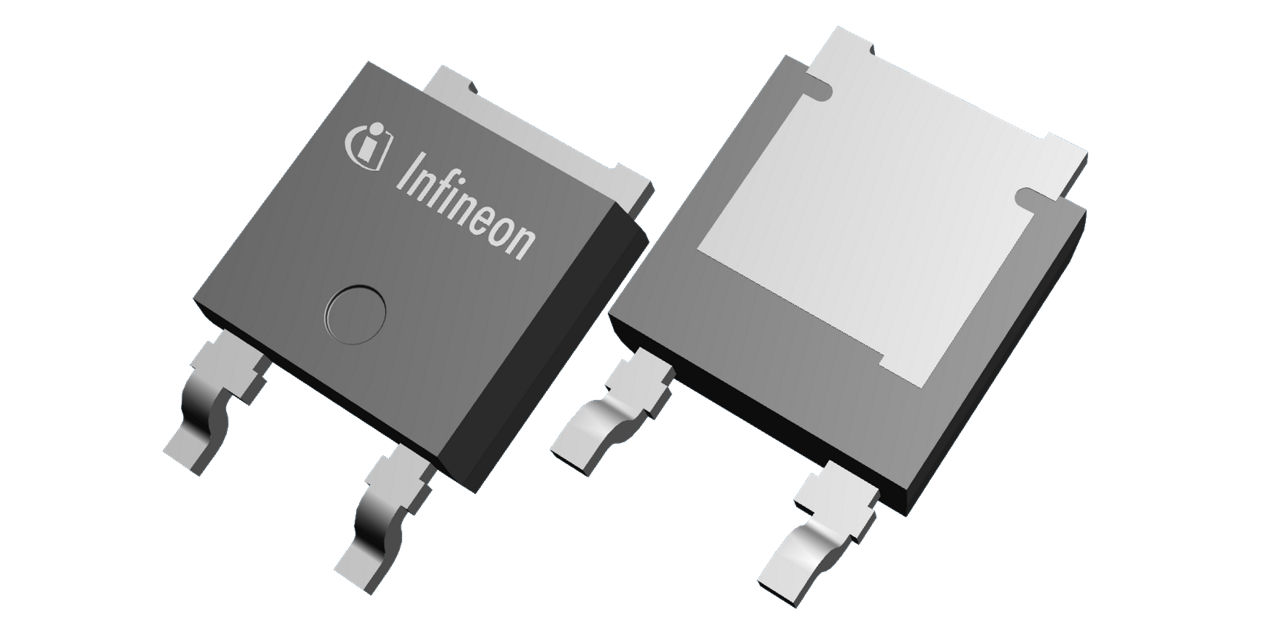

  • Package
    PG-TO252-2 (DPAK)
  • Ptot max
    98 W
  • QC
    14 nC
  • Qualification
    Industrial
  • RthJC
    1.2 K/W
  • VF
    1.4 V
Recommended
OPN
IDM02G120C5XTMA1
Product Status active and preferred
Infineon Package
PG-TO252-2
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO252-2
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The CoolSiC™ Schottky diode generation 5 1200 V, 2 A in a DPAK real2pin package, presents a leading edge technology for SiC Schottky Barrier diodes. The thin wafer technology, already introduced with G2, is now combined with a new merged pn junction improving diode surge current capabilities. The result is a series of products delivering market leading efficiency and more system reliability at an attractive cost point.

Features

  • Best-in-class forward voltage (VF)
  • No reverse recovery charge
  • Mild positive temp. depend. of VF
  • Best-in-class surge current capab.
  • Excellent thermal performance
