ICL8105

Digital flyback controller IC for LED driver
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ICL8105
ICL8105
Data Sheet

Product details

  • Comments
    See XDPL8105 which is the drop-in replacement and upgrade of ICL8105
  • Package

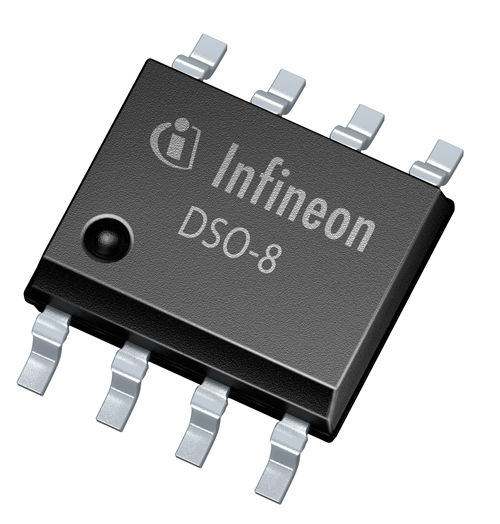

    PG-DSO-8
  • Switching Frequency
    3 kHz to 180 kHz
  • Topology
    Flyback
  • Type
    Controller
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

Features

  • Supports AC and DC input
  • AC input voltage 90–305 VAC
  • Highly accurate primary side control with wide output range
  • High output current accuracy
  • Efficiency up to 91 %
  • High power quality, typical power factor up to 0.9 and THD < 10%
  • Integrated 600 V startup cell
  • Digital parameter setting
  • All relevant error conditions are monitoredand protected
  • Undervoltage
  • Overvoltage
  • Open load
  • Output shorted

Benefits

  • Smooth operation with extended dimming capability
  • Fast engineering and simplified variant handling in production
  • Isolated 0-10 V dimming with configurable dimming curve
  • Intelligent thermal management
  • Small BoM due to primary side control and high level of integration
