ICE5BR3995CZ

65 kHz offline flyback regulator with integrated 950 V CoolMOS™ superjunction MOSFET and line overvoltage protection
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ICE5BR3995CZ
ICE5BR3995CZ
ea.
Data Sheet

Product details

  • ESD Protection max
    2 kV
  • Green Product
    Yes
  • ICC
    0.9 mA
  • Mounting
    THD
  • Operating Temperature
    -40 °C to 129 °C

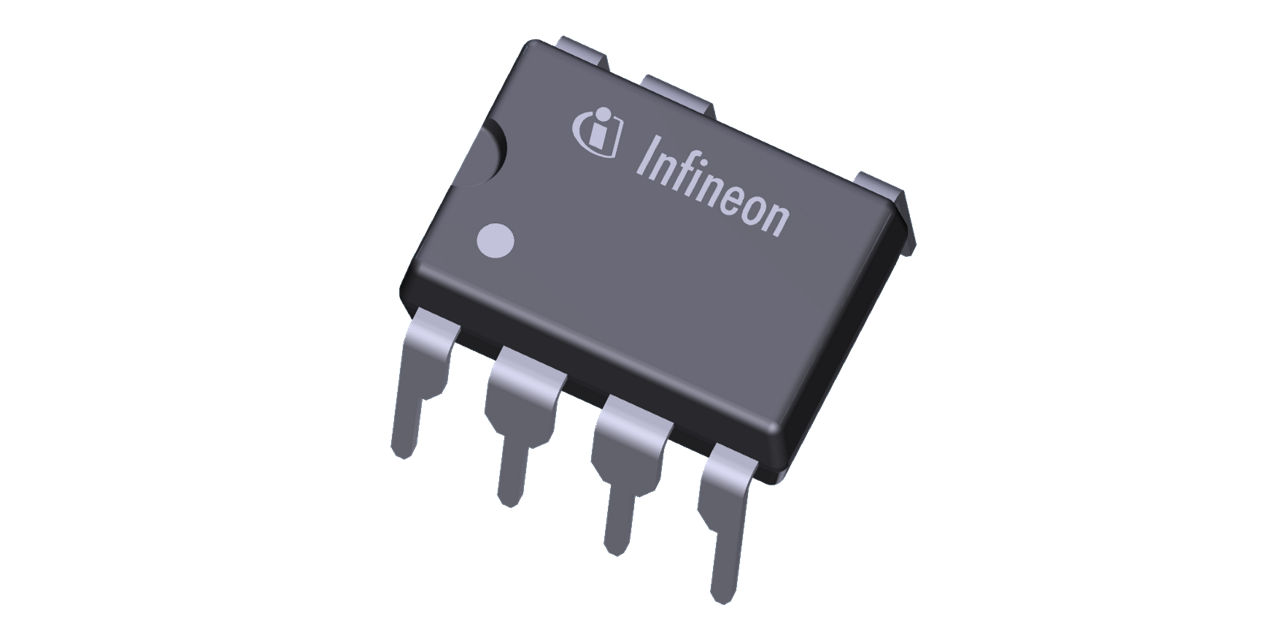

  • Package
    PG-DIP-7
  • Pout max
    16.5 W
  • RDS (on) max
    4.05 Ω
  • Sub Application
    Offline SMPS
  • Switching Frequency
    65 kHz
  • Target Application
    Power Supplies, Industrial, Consumer, Home appliances, SMPS, Metering
  • Technology
    Gen5
  • Topology
    Flyback
  • Type
    PWM controller with integrated MOSFET
  • VCC
    10.5 V to 24 V
  • VDS max
    950 V
Recommended
OPN
ICE5BR3995CZXKLA1
Product Status active and preferred
Infineon Package
PG-DIP-7
Package Name N/A
Packing Size 2000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DIP-7
Package Name -
Packing Size 2000
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
ICE5BR3995CZ 5th gen CoolSET™ controller with a 950V CoolMOS™ MOSFET. It includes adjustable line overvoltage protection for unstable grids. With integrated MOSFET, it supports ultra-wide input voltage ranges for smart metering/industrial apps. Snubber circuitry can be optimized for better efficiency/standby performance. DIP-7 packaged, it offers comprehensive protection features, EMI reduction, frequency reduction, and more.

Features

  • 65 kHz maximum switching frequency with integrated 950 V superjunction MOSFET
  • Adjustable line overvoltage protection
  • Supports isolated flyback topology up to an output power of 16 W
  • Auto-restart for all protection features

Benefits

  • Increased mid- and light-load efficiency with digital frequency reduction
  • Increased power supply robustness with line overvoltage protection
  • Ultra-wide input range to increase power supply robustness and industrial application
