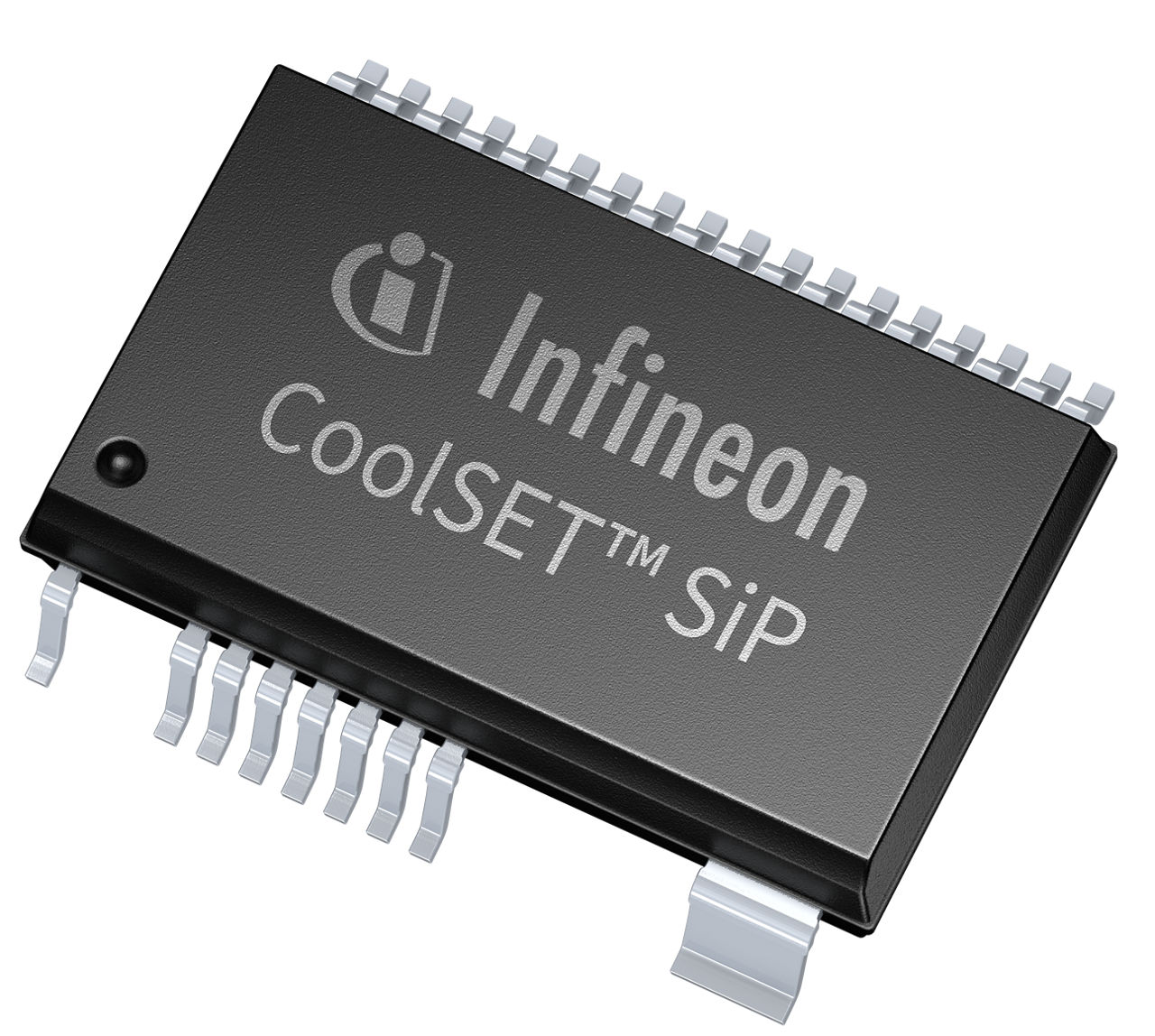

ICE183ZCM-V001

CoolSET™ SiP ZVS flyback controller with integrated 800 V CoolMOS™ P7 MOSFET in SMD package
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ICE183ZCM-V001
ICE183ZCM-V001
Data Sheet

Product details

  • ESD Protection max
    2 kV
  • Mounting
    SMD
  • Operating Temperature range
    -40 °C to 150 °C
  • Package
    PG-DSO-27
  • Pout
    30 W
  • RDS (on) max
    2.18 Ω
  • Topology
    ZVS Flyback
  • VCC range
    -0.3 V to 32 V
  • VDS max
    800 V
Recommended
OPN
ICE183ZCMV001XUMA1
Product Status active and preferred
Infineon Package PG-DSO-27
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-DSO-27
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The ICE183ZCM integrates AC zero cross detection, X-Cap discharge and 15V LDO enable pin. The 30 W power class in a small SMD footprint and the integrated 800 V power switch, primary and secondary controller, CT Link technology for isolated communication & MFI robustness reduce system complexity and BOM. Featuring zero voltage switching (ZVS) flyback operation, it minimizes switching losses and EMI. With comprehensive advanced protection features and industrial-grade qualification, it allows to meet stringent energy standards with high efficiency and creation of innovative designs for MHA with inverter auxiliary power supplies.

Features

  • Integrated 800 V CoolMOS™ P7
  • Avalanche rugged CoolMOS™
  • Integrated 950 V startup-cell
  • Novel ZVS flyback operation
  • Built-in primary side switch control
  • Built-in secondary side feedback control
  • AC zero cross detection, X-Cap discharge
  • Integrated SR and 15V LDO enable pin
  • >92% efficiency meets energy standards
  • <30 mW standby power consumption
  • Up to 30 W output power in DSO-27 package
  • Qualified for industrial applications

Benefits

  • Reduced component count and complexity
  • Fast and robust start-up
  • Saves space and lower overall cost
  • Low switching losses
  • Low EMI signature
  • High reliability and robust operation
  • Extended design-in flexibility
  • Safe isolated communication
  • Limited audible noise during start-up
  • Quiet power-down operation

Applications

Documents

Documents

Design resources

Partner solutions

Developer community
