ICB2FL03G

Smart ballast IC for UV-C disinfection lamps
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ICB2FL03G
ICB2FL03G
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    1.09
  • Features
    Fully Integrated
  • Output Current
    300 mA to 500 mA
  • Package
    PG-DSO-16
  • Topology
    Half Bridge
  • VCC
    0.3 V to 18 V
Recommended
OPN
ICB2FL03GXUMA2
Product Status active
Infineon Package PG-DSO-16
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-DSO-16
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The smart ballast controller for UV-C disinfection lamps (ICB2FL03G) comes in a slim SO-16 package. It is tailored for cost-performance optimized applications operating UV-C lamps. It integrates all functions required to operate UV-C disinfection lamps such as preheat-, ignition- and run-mode and protection features. Reliable and robust high-voltage isolation is achieved using Infineon’s proprietary Coreless Transformer Technology (CLT).

Features

  • Integrated critical conduction mode PFC
  • Intelligent digital/mixed-signal lamp inverter control
  • Integr. HV level-shift half-bridge drive
  • Optimized for UV-C ballasts
  • Drives up to 2 lamps in serial connection
  • Built-in protection functions
  • Handle lamp choke with high-saturation behavior
  • Special in-circuit test mode
  • Parameters set with resistors only
  • Separate adj levels of lamp overload
  • Self-adapting dead time adjustment

Benefits

  • Reduced BOM cost by lamp choke size
  • Reduced system cost
  • Suitable for multi-power ballasts
  • Enables ballast compatibility
  • Lamp can handle correctly EOL events
  • Eases design of multi-power ballasts
  • Reliable, stable ballast designs

Applications

Diagrams

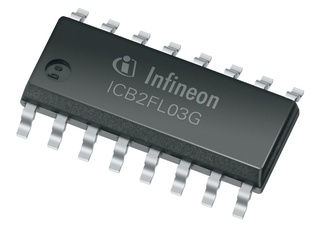

PG-DSO-16-10
PG-DSO-16-10
PG-DSO-16-10 PG-DSO-16-10 PG-DSO-16-10

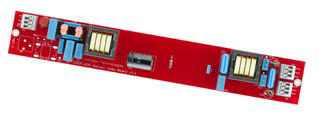

ICB2FL03G_Board ICB2FL03G_Board ICB2FL03G_Board
×
