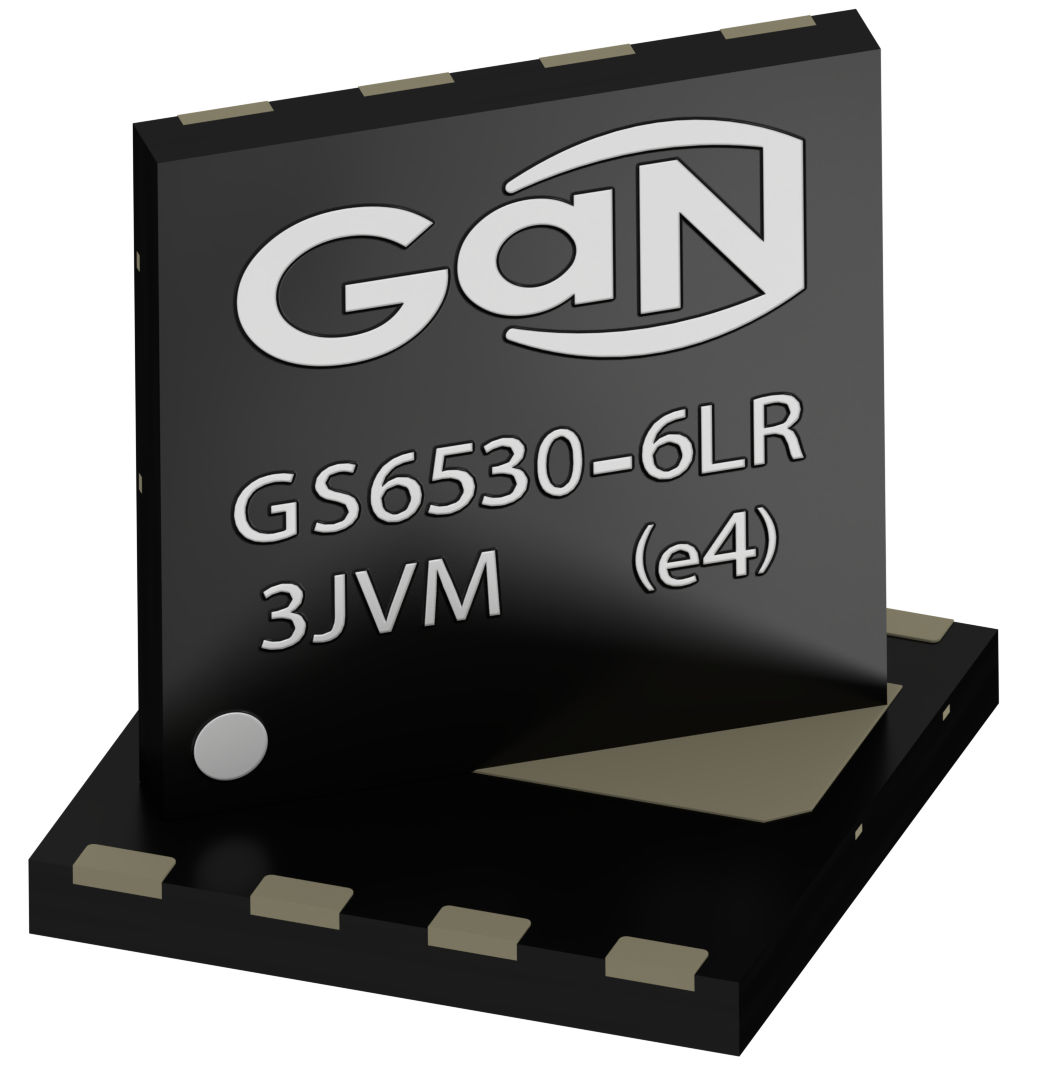

GS-065-030-6-LR-TR

END OF LIFE
CoolGaN™ Transistor 700 V G4 for ultimate efficiency and reliability
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

GS-065-030-6-LR-TR
GS-065-030-6-LR-TR
View replacement
Data Sheet

Product details

  • Green
    RoHS compliant, Halogen free
  • ID (@25°C) max
    40 A
  • IDpuls (@25°C) max
    67 A
  • Package
    PDFN
  • QG
    6.7 nC
  • Qualification
    Industrial
  • RDS (on) max
    54 mΩ
  • RDS (on) (typ)
    37 mΩ
  • VDS max
    700 V
OPN
GS0650306LRTRXUMA1
Product Status discontinued
Infineon Package
PG-VSON-8
Package Name PDFN 8x6
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-VSON-8
Package Name PDFN 8x6
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
The GS-065-030-6-LR is an enhancement-mode GaN-on-Si power transistor with properties that allow for high current, high voltage breakdown, and high switching frequency.Housed in the bottom-side cooled PDFN package, it offers very low junction-to-case thermal resistance, making it ideal for demanding high-power applications. These features combined ensure very high efficiency in power switching.

Features

  • 700 V e-mode power transistor
  • 850 V transient drain-to-source voltage
  • Bottom-cooled, TOLL package
  • RDS(on) = 40 mΩ
  • IDSmax,DC = 40 A / IDSmax,Pulse = 67 A
  • Ultralow FOM
  • Gate drive requirements (0 V to 6 V)
  • High switching frequency (> 1 MHz)
  • Fast, controllable fall and rise times
  • Reverse conduction capability
  • Zero reverse recovery loss

Benefits

  • Supports high operating frequency
  • Enables highest system efficiency
  • Enables ultra power density designs
  • Supports BOM cost savings
