FZ3600R17HE4P

1700 V, 3600 A single switch IGBT module
Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FZ3600R17HE4P
FZ3600R17HE4P
Data Sheet

Product details

  • Configuration
    Single switch
  • Dimensions (length)
    190 mm
  • Dimensions (width)
    140 mm
  • Features
    TIM
  • Housing
    IHM B
  • IC(nom) / IF(nom)
    3600 A
  • IC max
    3600 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
Recommended
OPN
FZ3600R17HE4PHPSA1
Product Status active
Infineon Package AG-IHMB190
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-IHMB190
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

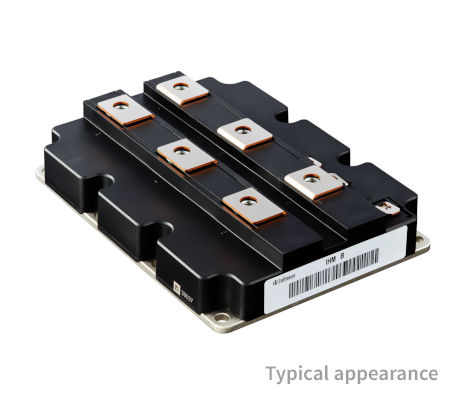

1700 V IHM B 190 mm single switch IGBT Module with Trench/Fieldstop IGBT 4 and pre-applied Thermal Interface Material - The best solution for your industry applications.

Features

  • Extended operation temp. Tvj op
  • Low switching losses; Low VCEsat
  • Tvj op = 150°C
  • 4 kV AC 1min insulation
  • Package with CTI > 400
  • High creepage & clearance distances
  • Copper base plate
  • UL recognised
