FS820R08A6P2LB

750 V, 820 A sixpack automotive qualified IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS820R08A6P2LB
FS820R08A6P2LB
ea.
Data Sheet

Product details

  • Applications
    CAV, eMobility, Hybrid Electric Vehicles, Drives
  • Configuration
    Sixpack
  • Cooling Concept
    PinFin baseplate
  • Dimensions (width)
    100.5 mm
  • Dimensions (length)
    154.5 mm
  • Features
    PinFin Baseplate, Long Tabs
  • Housing
    HybridPACK™ Drive
  • IC(nom) / IF(nom)
    820 A
  • IC max
    820 A
  • Launch year
    2017
  • Currently planned availability until at least
    2038
  • Qualification
    Automotive
  • Rated Current
    820 A
  • Technology
    IGBT EDT2
  • VCE(sat) (Tvj=25°C typ)
    1.1 V
  • VCES (Tvj=25°C typ)
    750 V
  • VF (Tvj=25°C typ)
    1.45 V
  • Voltage Class max
    750 V
Recommended
OPN
FS820R08A6P2LBBPSA1
Product Status active and preferred
Infineon Package AG-HDG1-7511
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-HDG1-7511
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

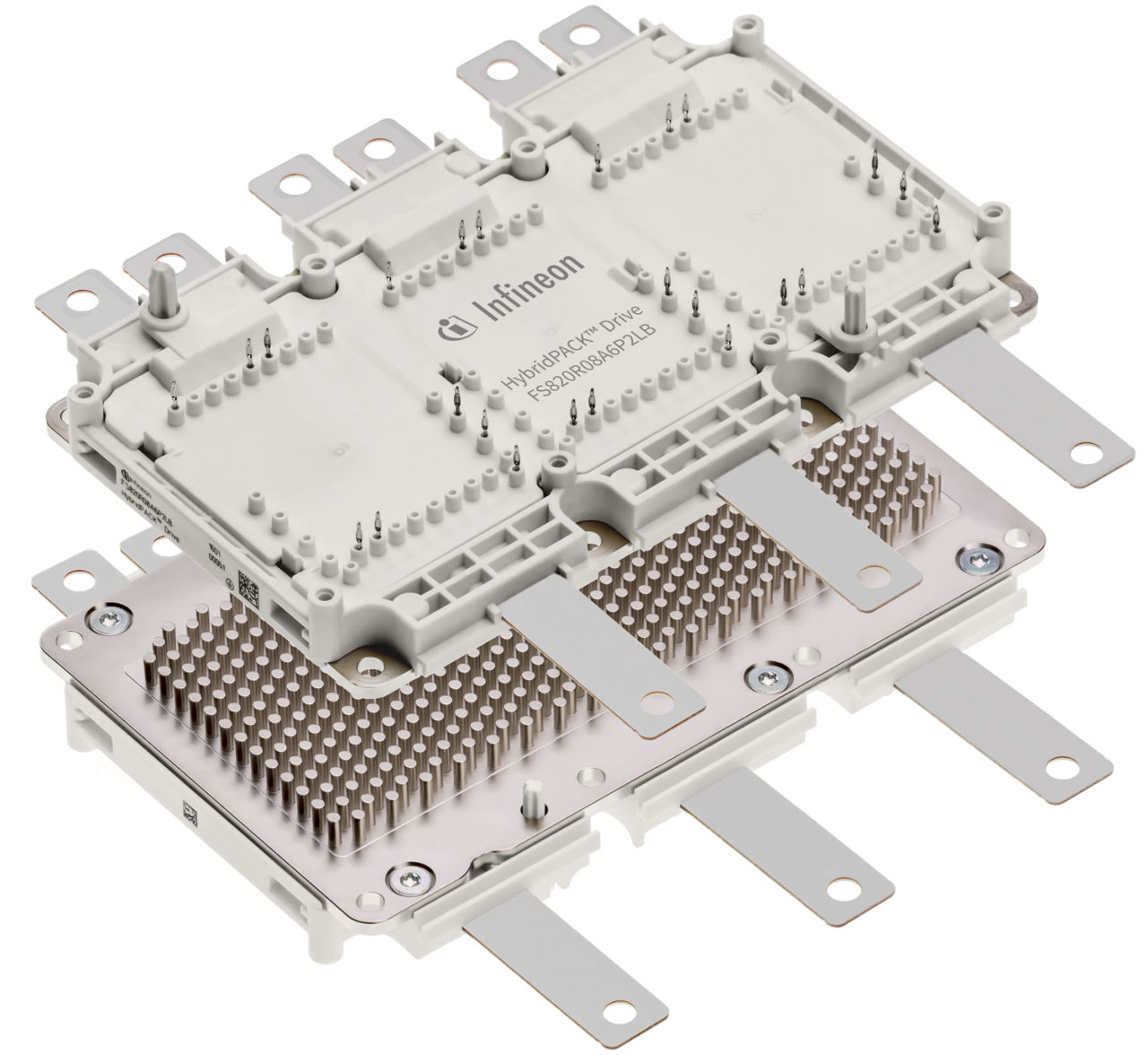

HybridPACK™ Drive module with EDT2 IGBT and Diode is an automotive qualified power module designed for Hybrid- and Electric Vehicle applications . The product derivate FS820R08A6P2LB has long AC power terminals and is well suited for implementation of phase current sensor solutions.Find appropriate Automotive EiceDRIVER™ .

Features

  • Blocking Voltage 750V
  • Low VCEsat
  • Low Switching Losses
  • Low QG & Cres
  • Low Inductive Design
  • Tvj op= 150°C
  • Short-time ext Op Tvj op = 175°C

Benefits

  • Compact Design
  • Guiding elements for PCB
  • PressFIT Contact Technology
  • RoHS complient
