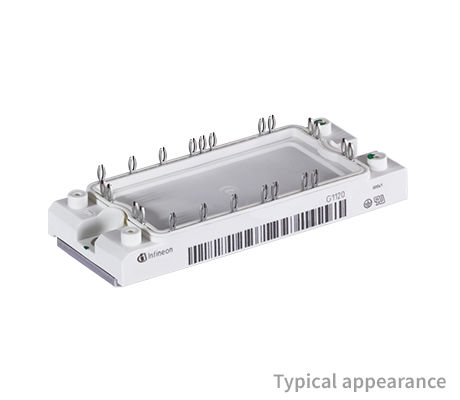

FS50R12KT4_B11

1200 V, 50 A sixpack IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS50R12KT4_B11
FS50R12KT4_B11
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    107.5 mm
  • Dimensions (width)
    45 mm
  • Features
    PressFIT
  • Housing
    EconoPACK™ 2
  • IC(nom) / IF(nom)
    50 A
  • IC max
    50 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.85 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
EconoPACK™ 2 1200 V, 50 A sixpack IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode, NTC and PressFIT Contact Technology.

Features

  • Low VCEsat
  • Tvj op = 150°C
  • VCEsatwith positive temp. coeffi.
  • Al2O3 substrate
  • High power & thermal cycling capab.
  • Integrated NTC temperature sensor
  • Copper base plate
  • Standard housing
