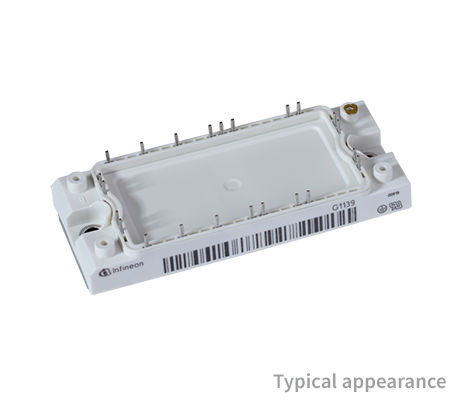

FP35R12KT4_B15

1200 V, 35 A PIM IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP35R12KT4_B15
FP35R12KT4_B15
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    107 mm
  • Dimensions (width)
    45 mm
  • Housing
    EconoPIM™ 2
  • IC(nom) / IF(nom)
    35 A
  • IC max
    35 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.85 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP35R12KT4B15BPSA1
Product Status active and preferred
Infineon Package AG-ECONO2C
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONO2C
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPIM™ 2 1200 V, 35 A three phase PIM IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC (alternative mechnically compatible to an IGBT3 module)

Features

  • Low switching losses
  • Low VCEsat
  • Tvj op = 150°C
  • VCEsatwith positive temp. coeffi.
  • High power & thermal cycling capab.
  • Copper base plate
  • Solder contact technology
  • Standard housing
