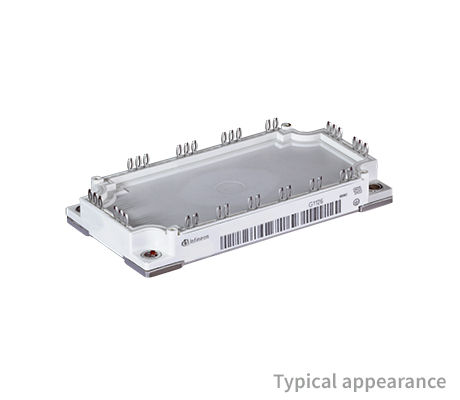

FP100R12KT4_B11

1200 V, 100 A PIM three phase input rectifier IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP100R12KT4_B11
FP100R12KT4_B11
ea.
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (length)
    122 mm
  • Dimensions (width)
    62 mm
  • Features
    PressFIT
  • Housing
    EconoPIM™ 3
  • IC(nom) / IF(nom)
    100 A
  • IC max
    100 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - T4
  • VCE(sat) (Tvj=25°C typ)
    1.75 V
  • VF (Tvj=25°C typ)
    1.7 V
  • Voltage Class max
    1200 V
Recommended
OPN
FP100R12KT4B11BOSA1
Product Status active and preferred
Infineon Package AG-ECONO3B
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONO3B
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoPIM™3 1200 V, 100 A three-phase IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled Diode, NTC and PressFIT contact technology. The Power Integrated Modules (PIM) with integration of rectifier and brake chopper enables system cost savings. Also available as variation with soldering connection technology: FP100R12KT4
