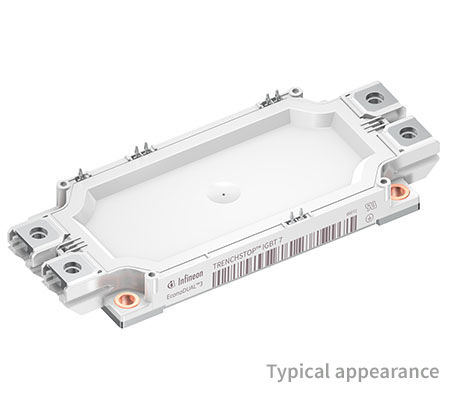

FF750R12ME7_B11

1200 V, 750 A dual IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF750R12ME7_B11
FF750R12ME7_B11
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    152 mm
  • Dimensions (width)
    62.5 mm
  • Features
    PressFIT
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    750 A
  • IC max
    750 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - E7
  • VCE(sat) (Tvj=25°C typ)
    1.5 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF750R12ME7B11BPSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoDUAL™ 3 1200 V, 750 A dual TRENCHSTOP™ IGBT7 module with emitter controlled 7 diode, NTC and PressFIT contact technology.

Features

  • Highest power density
  • Tvj op = 175°C overload
  • Improved terminals
  • Optimized creepage distance
  • For 1500 V PV applications
  • PressFIT control pins
  • Screw power terminals
  • Integrated NTC temperature sensor
  • Isolated base plate
  • Compact and robust design
  • Molded terminals
  • Solderable PressFIT aux. terminals
