Active and preferred
RoHS Compliant

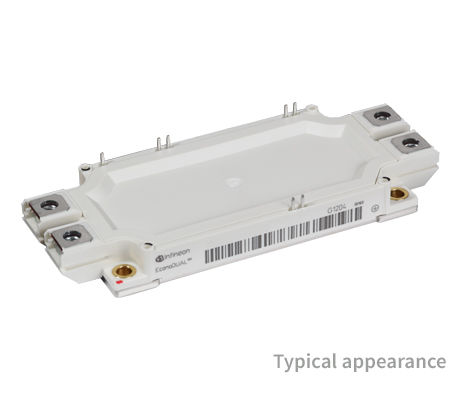

FF300R07ME4

650 V, 300 A dual IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF300R07ME4
FF300R07ME4
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    152 mm
  • Features
    Solder Pin
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    300 A
  • IC max
    300 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VCES / VRRM
    650 V
  • VF (Tvj=25°C typ)
    1.55 V
  • Voltage Class max
    650 V
Recommended
OPN
FF300R07ME4BOSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoDUAL™ 3 650 V, 300 A dual IGBT module with TRENCHSTOP™ IGBT4, Emitter Controlled Diode and NTC.Also available with PressFIT Contact Technology .

Features

  • Incr. blocking volt. capab. < 650 V
  • Increased DC link voltage
  • High short circuit capability
  • Self limiting short circuit current
  • Tvj op = 150°C
  • Integrated NTC temperature sensor
  • Isolated Copper base plate
  • Standard housing
