FF1800R12IE5P

1200 V, 1800 A dual IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1800R12IE5P
FF1800R12IE5P
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (length)
    250 mm
  • Dimensions (width)
    89 mm
  • Features
    .XT Technology, TIM
  • Housing
    PrimePACK™ 3+
  • IC(nom) / IF(nom)
    1800 A
  • IC max
    1800 A
  • Qualification
    Industrial
  • Technology
    IGBT5 - E5
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.9 V
  • Voltage Class max
    1200 V
Recommended
OPN
FF1800R12IE5PBPSA1
Product Status active and preferred
Infineon Package AG-PRIME3+
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-PRIME3+
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

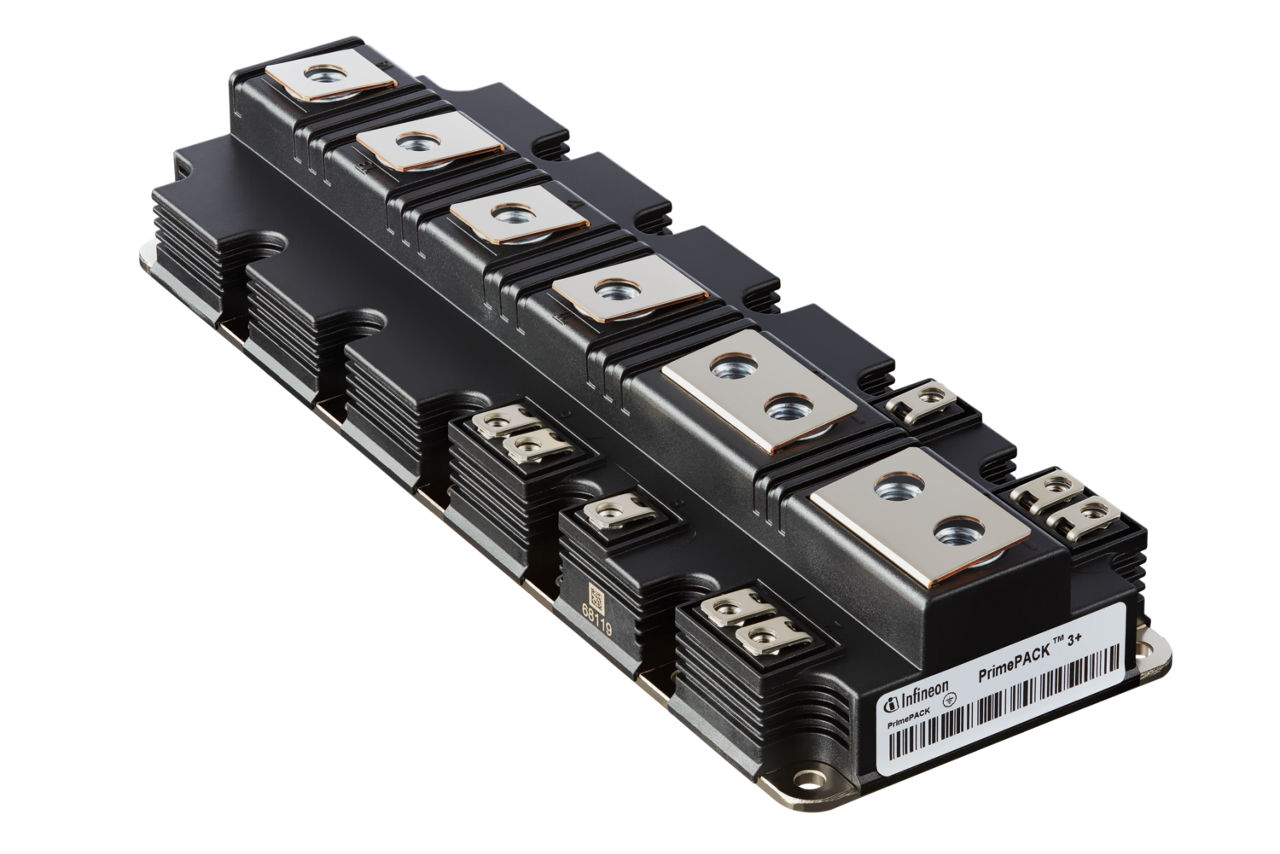

PrimePACK™ 3+ 1200 V, 1800 A dual IGBT module with TRENCHSTOP™ IGBT5 and .XT soft switching interconnection technology, Emitter Controlled diode, NTC and pre-applied Thermal Interface Material .

Features

  • Extended Tvj op= 175°C
  • Increased output current
  • Copper Bonds
  • Sintering of chips
  • Total losses reduced by up to 20%
  • Package with CTI > 400
