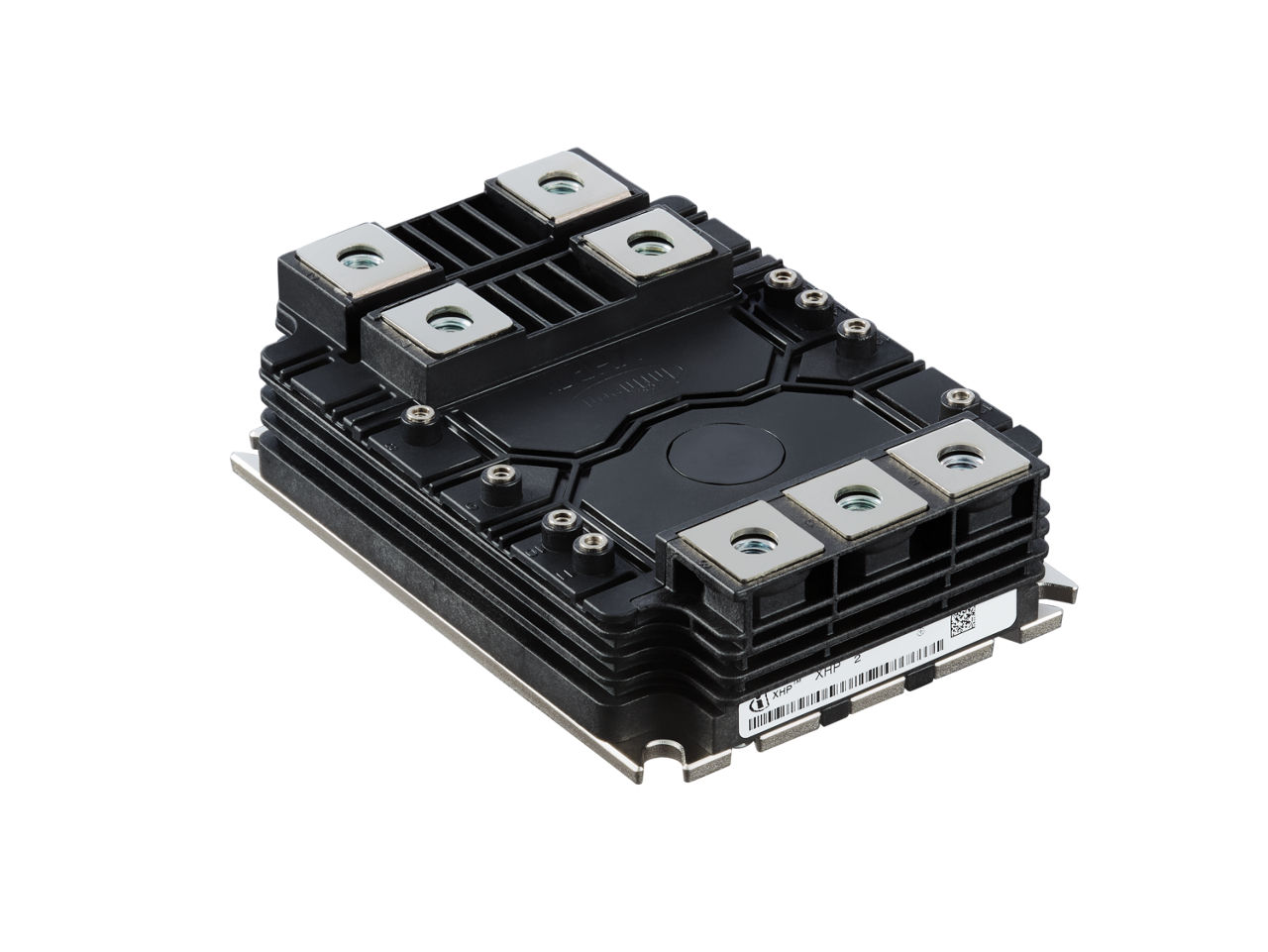

FF1000UXTR23T2M1_B5

CoolSiC™ MOSFET halfbridge module 2300 V
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF1000UXTR23T2M1_B5
FF1000UXTR23T2M1_B5
ea.
Data Sheet

Product details

  • Applications
    Traction, ESS, H2, Renewables
  • Configuration
    Half-bridge
  • Dimensions (width)
    100 mm
  • Dimensions (length)
    140 mm
  • Features
    .XT interconnection technology
  • Housing
    XHP™ 2
  • Qualification
    Traction, Industrial
  • RDS (on) (@ Tj = 25°C)
    0.95 mΩ
Recommended
OPN
FF1000UXTR23T2M1B5BPSA1
Product Status active and preferred
Infineon Package AG-XHP2K33
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-XHP2K33
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
XHP™ 2 CoolSiC™ MOSFET 2.3 kV, 1.0 mΩ with halfbridge topology and robust .XT interconnection technology for enhanced lifetime with best in class reliability.

Features

Integrated body diode 2000 A Inom Low-inductive housing XHP™ 2 .XT interconnection technology Symmetrical module design Lowest switching and conduction losses Tvj,op=175°C continuous 6 kV isolation voltage Cu baseplate
