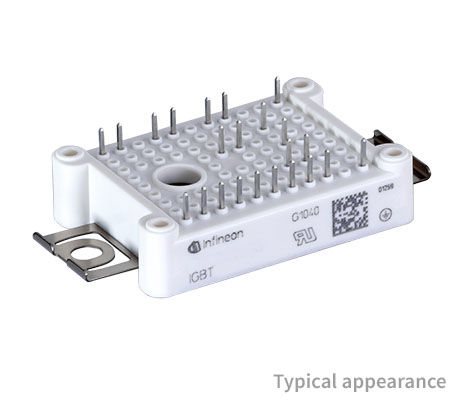

650 V, 50 A fourpack automotive qualified IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F4-50R07W1H3_B11A
F4-50R07W1H3_B11A
Data Sheet

Product details

  • Applications
    Welding, Induction Heating, Hybrid Electric Vehicles, eMobility, CAV, Battery Management
  • Configuration
    Fourpack
  • Dimensions (length)
    48 mm
  • Dimensions (width)
    33.8 mm
  • Features
    PressFIT
  • Housing
    EasyPACK™ 1B
  • IC(nom) / IF(nom)
    50 A
  • IC max
    50 A
  • Qualification
    Automotive
  • Technology
    IGBT HighSpeed 3
  • VCE(sat) (Tvj=25°C typ)
    1.5 V
  • VCES (Tvj=25°C typ)
    650 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    650 V
OPN
F450R07W1H3B11ABOMA1
Product Status discontinued
Infineon Package AG-EASY1BA-311
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package AG-EASY1BA-311
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EasyPACK™ 1B Module with fast TRENCHSTOP™ IGBT3, Rapid 1 diode and PressFIT / NTC

Features

  • Automotive High Speed IGBT H3 & Rapid
  • Low Switching Losses
  • Low inductive design
  • 2.5 kV AC 1min Insulation
  • High Creepage & Clearance Distances
  • Integrated NTC temperature sensor
  • RoHS compliant
  • Rugged integrated mounting clamps
