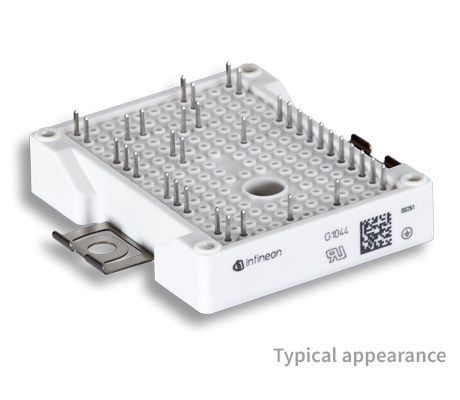

F3L100R12W2H3_B11

1200 V, 100 A 3-level IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

F3L100R12W2H3_B11
F3L100R12W2H3_B11
ea.
Data Sheet

Product details

  • Configuration
    3-level
  • Dimensions (width)
    48 mm
  • Dimensions (length)
    56.7 mm
  • Features
    PressFIT, Phase leg
  • Housing
    EasyPACK™ 2B
  • IC(nom) / IF(nom)
    100 A
  • IC max
    100 A
  • Qualification
    Industrial
  • Technology
    IGBT HighSpeed 3
  • VCE(sat) (Tvj=25°C typ)
    1.55 V
  • VF (Tvj=25°C typ)
    1.35 V
  • Voltage Class max
    1200 V
Recommended
OPN
F3L100R12W2H3B11BPSA1
Product Status active and preferred
Infineon Package AG-EASY2B
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY2B
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 2B 1200 V, 100 A 3-level phase leg IGBT module with active "Neutral Point Clamp 2", NTC, High Speed IGBT H3 and PressFIT Contact Technology.

Features

  • Low inductive design
  • Low switching losses
  • Low VCEsat
  • PressFIT contact technology
  • Compact design
  • Integrated mounting clamps
  • Al2O3 substrate with:
  • Low thermal resistance

Applications

Photovoltaic
