Active and preferred
RoHS Compliant
Lead-free

ESD246-B1-W01005

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD246-B1-W01005
ESD246-B1-W01005
ea.
Data Sheet

Product details

  • CL
    5.5 pF
  • IEFT
    40A
  • IPP
    5.0A
  • IR
    1 nA
  • Protected Lines
    1
  • Rdyn (reverse)
    0.1 Ω
  • Rdyn (forward)
    0.1 Ω
  • Vcl typ. reverse (TLP 16A)
    7.5 V
  • Vcl typ. reverse (TLP 30A)
    9 V
  • VESD
    -15 kV to 15 kV
  • VWM
    -5.5 V to 5.5 V
Recommended
OPN
ESD246B1W01005E6327XTSA1
Product Status active and preferred

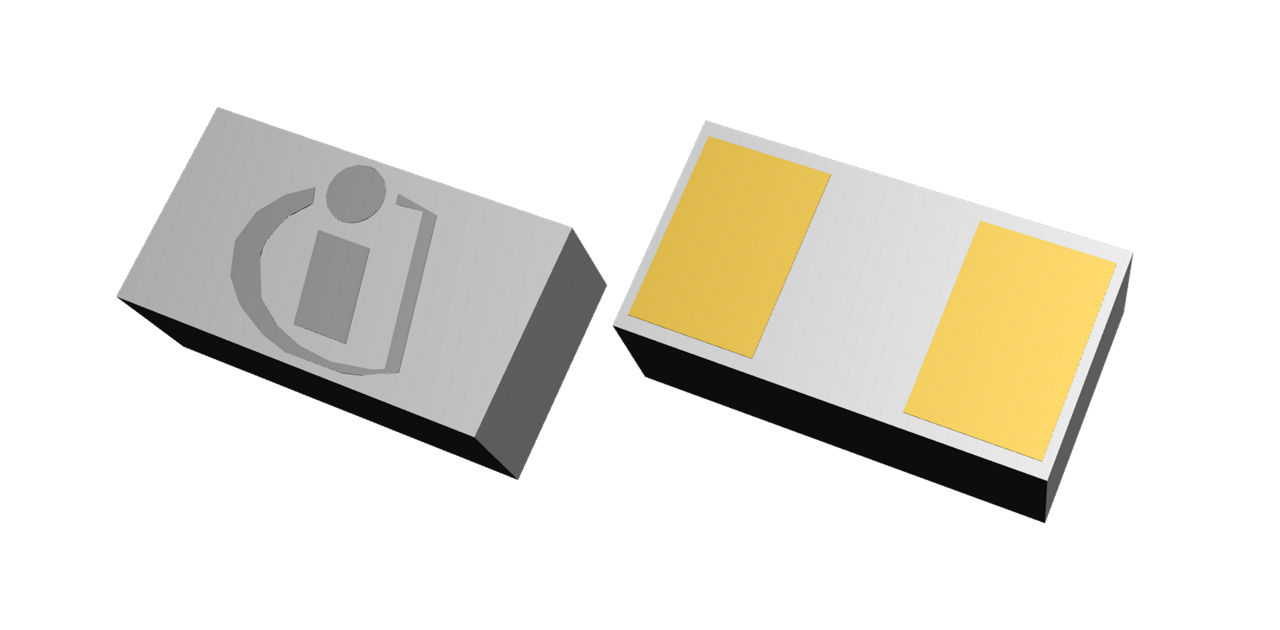

Infineon Package
SG-WLL-2-2
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SG-WLL-2-2
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Low clamping voltage bi-directional ESD / Transient Protection Diode
