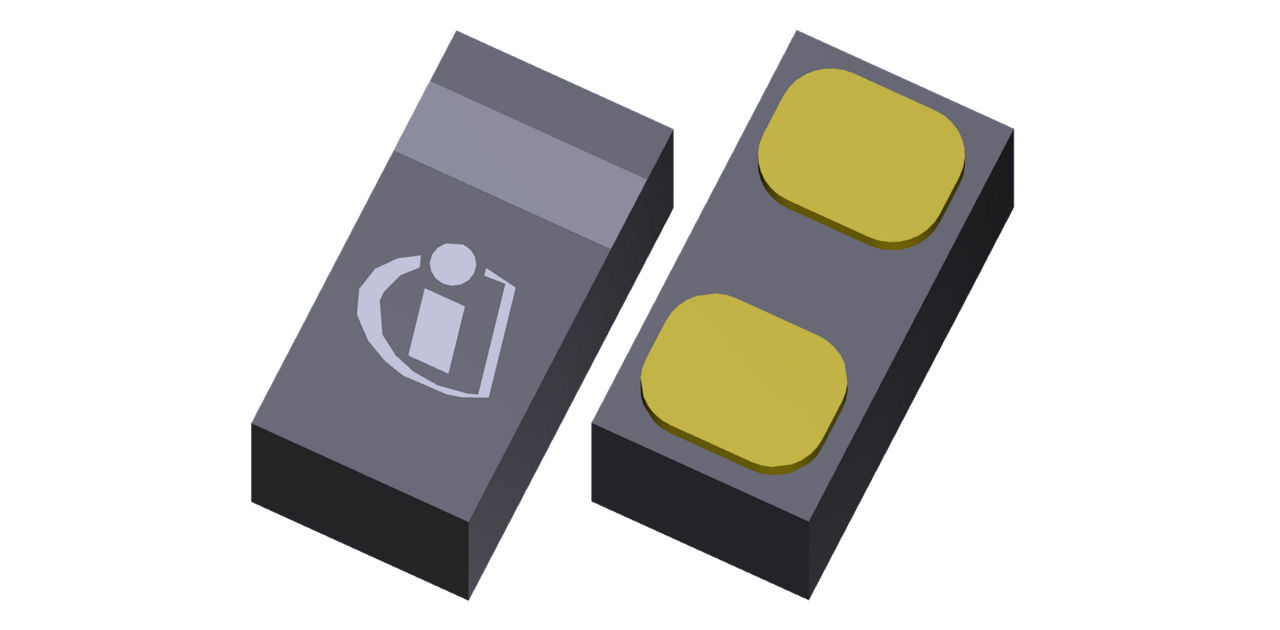

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD203-B1-02ELS
ESD203-B1-02ELS
Data Sheet

Product details

  • CL
    6 pF
  • IEFT
    50A
  • IPP
    5.0A
  • IR
    1 nA
  • Protected Lines
    1
  • Rdyn (reverse)
    0.29 Ω
  • Rdyn (forward)
    0.29 Ω
  • Vcl typ. reverse (TLP 16A)
    17 V
  • Vcl typ. reverse (@16A)
    17 V
  • VESD
    -30 kV to 30 kV
  • VWM
    -13.2 V to 13.2 V
OPN
ESD203B102ELSE6327XTSA1
Product Status not for new design
Infineon Package
PG-TSSLP-2-4
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
PG-TSSLP-2-4
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Ultra Low Clamping Bidirectional ESD / Transient Protection Diode

Features

  • ESD / transient protection according to:
    - IEC61000-4-2 (ESD): ±30 kV (air/contact discharge)
    - IEC61000-4-4 (EFT): 50 A (5/50 ns)
    - IEC61000-4-5 (Surge): 5A (8/20 µs)
  • Bi-directional, working voltage up to VRWM = ±12 V max.
  • Low capacitance: CL = 6 pF (typical)
  • Ultra low dynamic resistance: RDYN = 0.29 Ω typ.
  • Low reverse current. IR = 50nA (max.)
  • Pb-free (RoHS compliant) and halogen free package
