not for new design
RoHS Compliant
Lead-free

ESD203-B1-02EL

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ESD203-B1-02EL
ESD203-B1-02EL
ea.
Data Sheet

Product details

  • CL
    6 pF
  • IEFT
    50A
  • IPP
    5.0A
  • IR
    1 nA
  • Protected Lines
    1
  • Rdyn (reverse)
    0.29 Ω
  • Rdyn (forward)
    0.29 Ω
  • Vcl typ. reverse (TLP 16A)
    17 V
  • Vcl typ. reverse (@16A)
    17 V
  • VESD
    -30 kV to 30 kV
  • VWM
    -13.2 V to 13.2 V
OPN
ESD203B102ELE6327XTMA1
Product Status not for new design

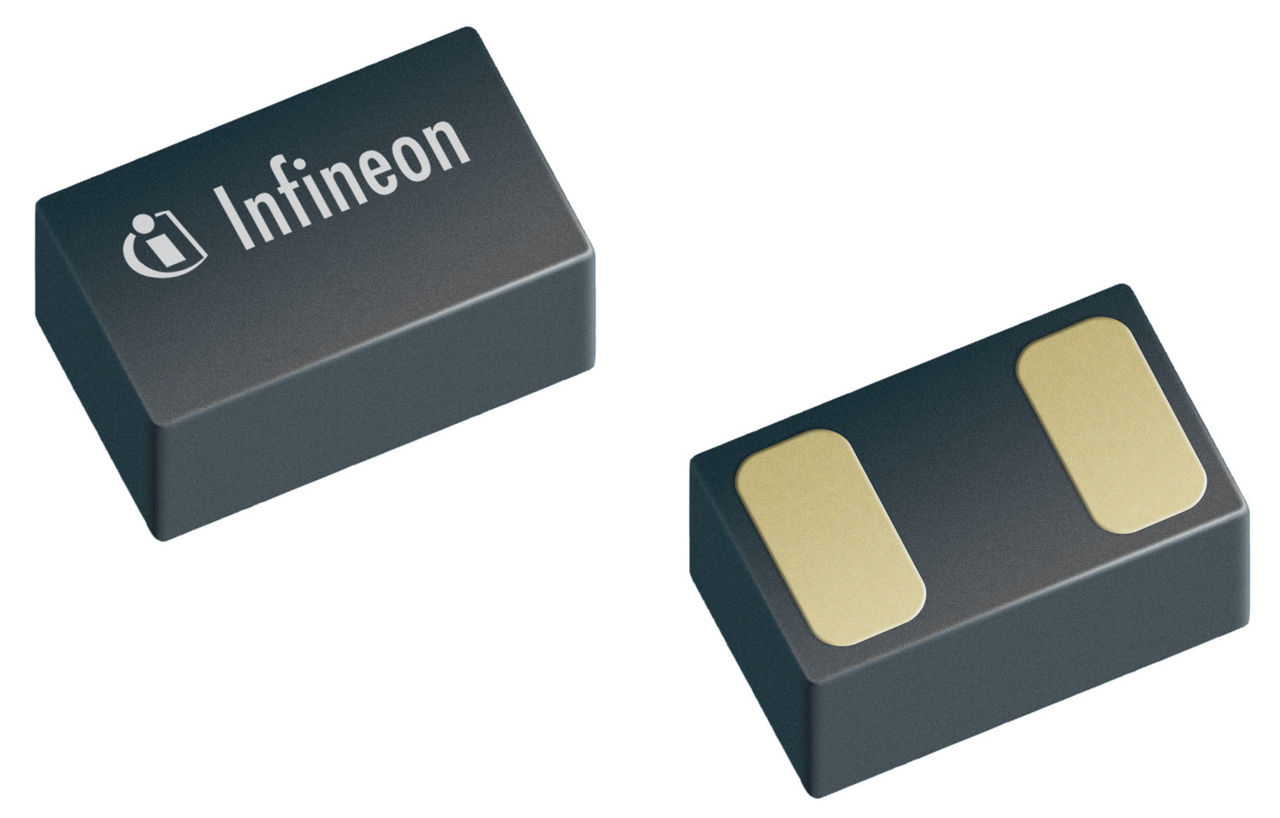

Infineon Package
PG-TSLP-2-20
Package Name N/A
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-TSLP-2-20
Package Name -
Packing Size 15000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Ultra Low Clamping Bidirectional ESD / Transient Protection Diode

Features

  • ESD / transient protection according to:
    – IEC61000-4-2 (ESD): ±30 kV (air/contact discharge)
    - IEC61000-4-4 (EFT): 50 A (5/50 ns)
    – IEC61000-4-5 (Surge): 5A (8/20 µs)
  • Bi-directional, working voltage up to VRWM = ±12 V max.
  • Low capacitance: CL = 6 pF (typical)
  • Ultra low dynamic resistance: RDYN = 0.29 Ω typ.
  • Low reverse current. IR = 50nA (max.)
  • Pb-free (RoHS compliant) and halogen free package

Applications
