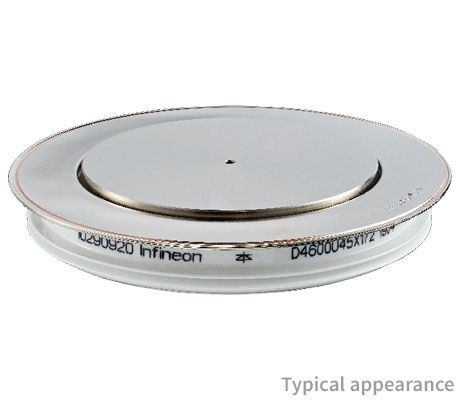

D4600U45X172

4500 V IGCT/IGBT - Freewheeling Diode Disc
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

D4600U45X172
D4600U45X172
Data Sheet

Product details

  • Clamping force [kn]
    50 to 130
  • Configuration
    IGCT/IGBT - Freewheeling Diodes
  • Housing
    Disc dia 172 mm height 26mm / Ceramic
  • I(FSM) max
    80000 A
  • IFAVM/TC [A/°C] (@180° el sin)
    4780/55
  • IFSM [A] (@10ms, Tvj max)
    80000
  • IRM [A] (@di/dt = 1000 A/µs, IFM = 2.5 kA, Tvj max) max
    5500
  • Qr [mAs] (@di/dt = 1000 A/µs, IFM = 2.5 kA, Tvj max) max
    13
  • rT [mΩ] (@Tvj max) max
    0.3
  • RthJC [K/kW] (@DC) max
    3.3
  • Tvj [°C] max
    140
  • VF/IF [V/kA] (@Tvj max)
    2.0/2.5
  • VR(D) [kV] (@TC = 25°)
    2.8
  • VRRM [V]
    4500
  • VRRM max
    4500 V
  • VT0 [V] (@Tvj max) max
    1.25
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    32000
Recommended
OPN
D4600U45X172XPSA1
Product Status active and preferred
Infineon Package BG-D17226K-1
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-D17226K-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
IGCT/IGBT - Freewheeling Diodes 4500 V, 4600 A with 120 mm diameter in a ceramic housing. The ultra-soft freewheeling diodes for IGBTs build on our existing IGCT freewheeling diode family. These diodes are the perfect fit for modern IGBT applications such as HVDC voltage source converters and medium voltage drives.
