Active and preferred
RoHS Compliant
Lead-free

D1331SH45T

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

D1331SH45T
D1331SH45T
Data Sheet

Product details

  • Clamping force [kn]
    36 to 52
  • Configuration
    IGCT/IGBT - Freewheeling Diodes
  • Housing
    Disc dia 120mm height 26mm / Ceramic
  • I(FSM) max
    28000 A
  • IFAVM/TC [A/°C] (@180° el sin)
    1310/85
  • IFSM [A] (@10ms, Tvj max)
    28000
  • IRM [A] (@di/dt = 1000 A/µs, IFM = 2.5 kA, Tvj max) max
    1500
  • Qr [mAs] (@di/dt = 1000 A/µs, IFM = 2.5 kA, Tvj max) max
    3.5
  • rT [mΩ] (@Tvj max) max
    0.948
  • RthJC [K/kW] (@DC) max
    7.5
  • Tvj [°C] max
    140
  • VF/IF [V/kA] (@Tvj max)
    5.6/2.5
  • VR(D) [kV] (@TC = 25°)
    2.8
  • VRRM [V]
    4500
  • VRRM max
    4500 V
  • VT0 [V] (@Tvj max) max
    1.83
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    3920
Recommended
OPN
D1331SH45TXPSA1
Product Status active and preferred
Infineon Package BG-D12026K-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-D12026K-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The D1331SH IGCT-Diode discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 120mm and a height of 26mm.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High case non-rupture current
  • Soft turn-off behavior

Applications

Diagrams

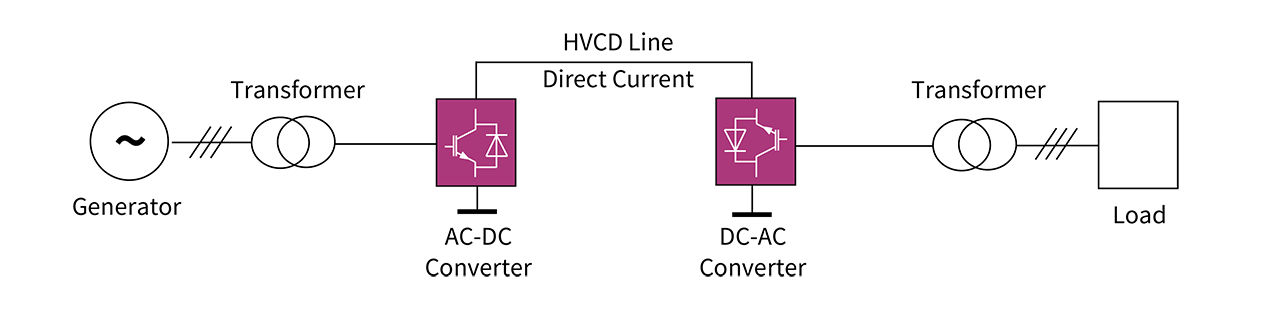

Diagram-Voltage-Sourced-Converters-1280x314
Diagram-Voltage-Sourced-Converters-1280x314
Diagram-Voltage-Sourced-Converters-1280x314 Diagram-Voltage-Sourced-Converters-1280x314 Diagram-Voltage-Sourced-Converters-1280x314
×
